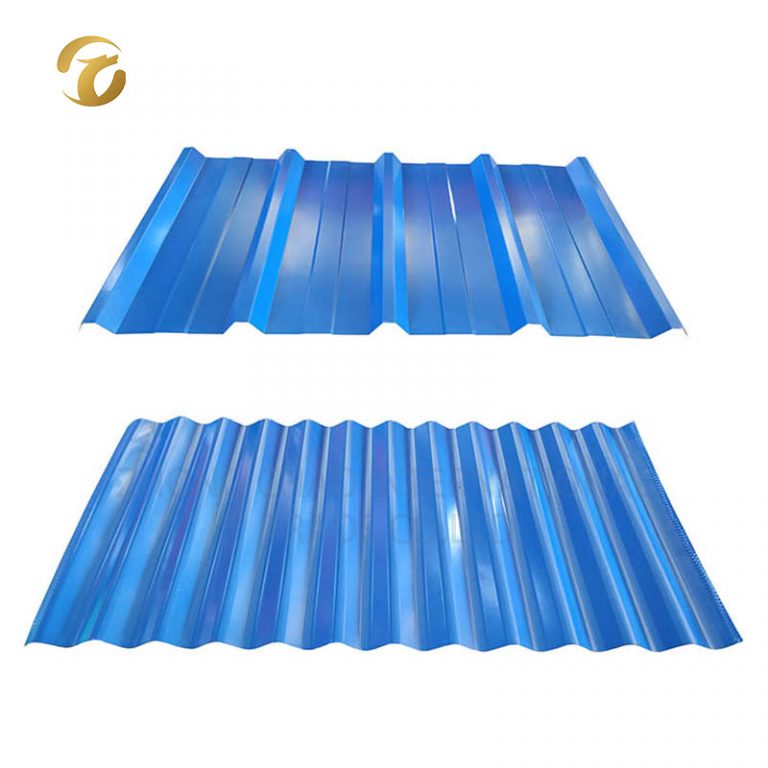

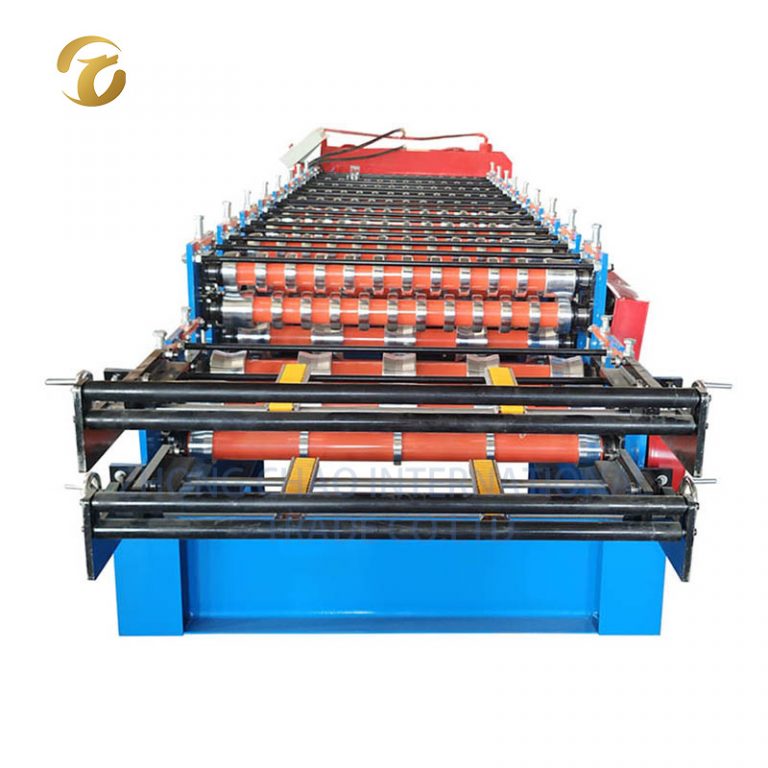

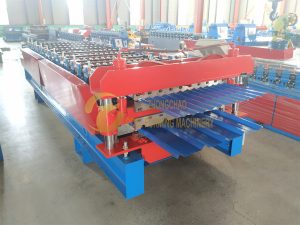

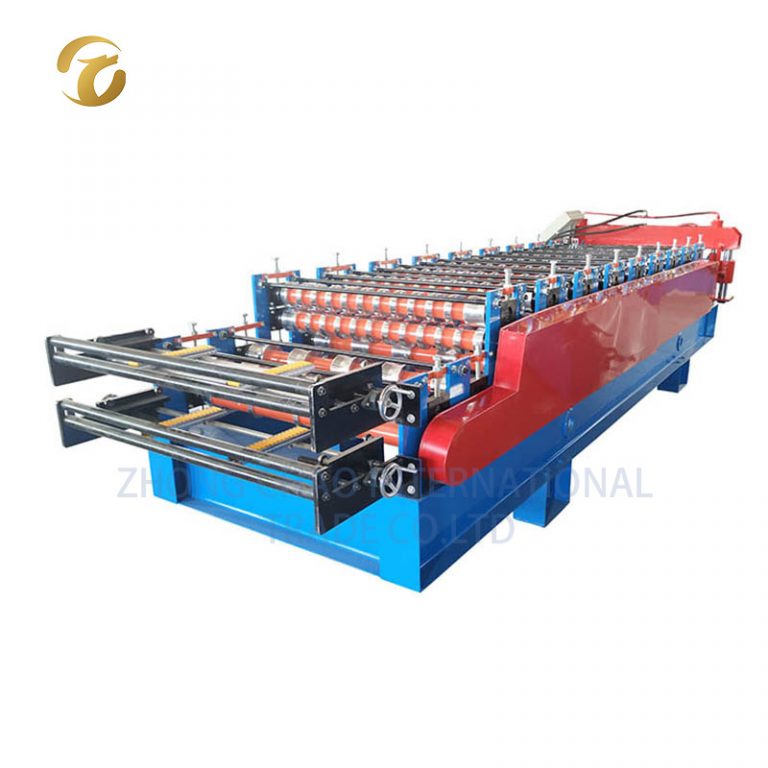

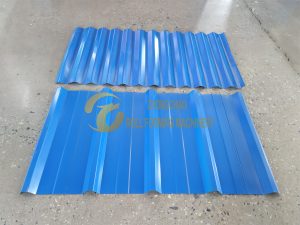

1.Double different profile roofing double layer roll forming machine for steel tile making
—- To design and make the best roll forming machine, we took EUROPEAN quality standard;
—- Choose the best material and components, and adopting our 17+ years experience;
—- We achieves that the machine capacity is double of the competitors;
—- The machine working speed can be 60m/min;
—- Very easy to install and operate the roll forming machine.
2. Double different profile roofing double layer roll forming machine for steel tile making parameters
Raw material | |
Material | Colored steel sheet, galvanized steel sheet, aluminum sheet |
Thickness of coil sheet | 0.3-0.8 mm |
Material expand width | 940 mm/1000mm/1200mm |
Efficiency width | 762-760 mm/840-910mm/1000-1050mm |
Machine details | |
Roller material | High grade no. 45 forged steel with 0.05mm hard chrome plating |
Shaft material | High grade no. 45 carbon wrought steel |
Cutting blade | Cr12 mould steel with quenched treatment |
Diameter of shaft | 70mm |
Main frame | 300 H steel |
Forming steps | Up layer:11 stations
Down layer:13 stations |
Productivity | 20-25m/min |
Hydraulic station power | 5.5kw |
Hydraulic pressure | 10-12mpa |
Appearance size | 6500mm*1500mm*1500mm |
Weight | 4.5 tons |
Hydraulic oil | 40# hydraulic oil |
Electric tension | 380v 50 hz 3 phase or as your requirement |
Cut mode | Hydraulic forming after cutting off |
Cutter materia | Cr12 heat treatment |
Electronic control system | Plc, touch screen, encoding counter |
Color | Blue, green or yellow or as your requirement |
Rolling material | 45# steel,roller surfaces polishing, hard plating |
Machine Components | ||
No. | Name | QTY |
1 | Manual uncoiler | 1 set |
2 | Feeding and leveling device | 1 set |
3 | Roll forming system | 1 set |
4 | Hydraulic punching and cutting | 1 set |
5 | Product support frame | 1 set |
6 | PLC Control System | 1 set |
LCL Loading Packaging: Steel pallet and plywood case.
——FCL Loading Packaging: Steel pallet with plastic film.
——Shipping: by sea
FAQ
Q1. What’s your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
