Please contact us for more details.
| Raw material | |
| material | colored steel sheet, galvanized steel sheet, aluminum sheet |
| thickness of coil sheet | 0.3-0.8 mm |
| material expand width | 1000 mm |
| Machine details | |
| roller material | high grade NO. 45 forged steel with 0.05mm hard chrome plating |
| shaft material | high grade NO. 45 carbon wrought steel |
| cutting blade | Cr12 mold steel with quenched treatment |
| diameter of shaft | 70mm |
| main frame | 350 H steel |
| forming steps | 14 rows |
| productivity | 20-25 m/min (the trapezoid panel speed)
4-5 m/min (the curving panel speed) |
| Motor power | 5.5 KW |
| hydraulic pressure | 10-12MPa |
| hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirements |
| Dimension | The machine dimension about : 8m*1.5*1.5m |
| Weight | About 6T |
| Color | Blue body, Red and yellow secondary | According to customer requirements |
| Rolling material | 45# steel,roller surfaces polishing, hard plating | |
| Service life | 10 years |
| Cut Mode | Hydraulic forming after cutting off | |
| Cutter material | Cr12 Heat Treatment | Thick, high wear-resisting knife plate |
| Electronic control
system |
PLC, Touch Screen,
Encoding counter |

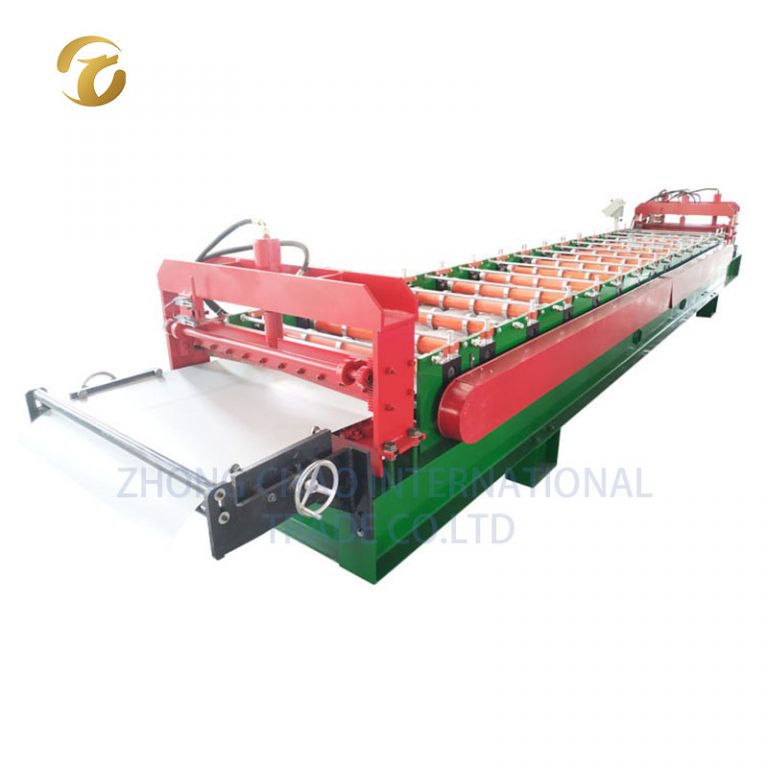

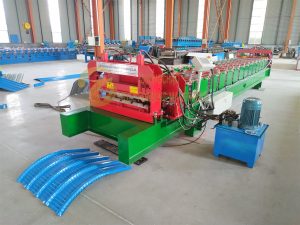

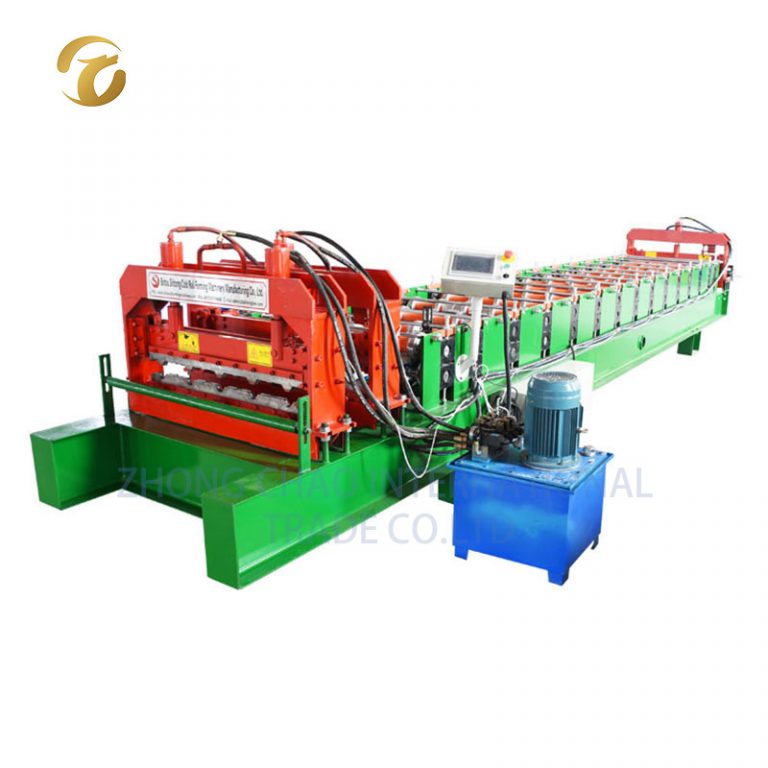

Main Equipment
decoiler, main forming machine, hydraulic cutting, product stand, hydraulic system, electric system
| advantage of the machine | 1. Low noise
2. Stable 3. Easy to control |

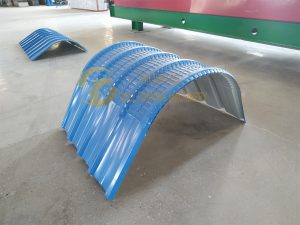

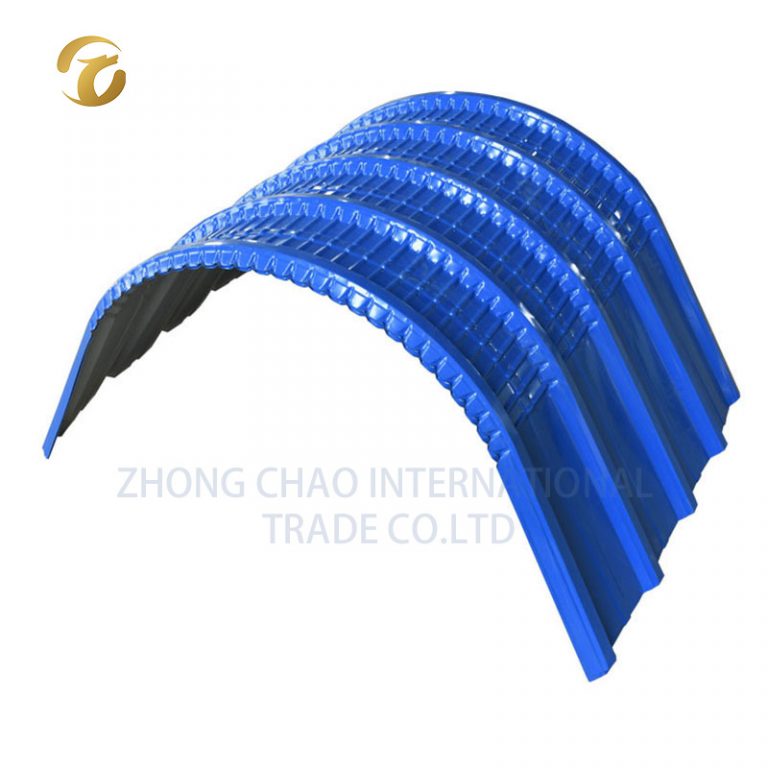

| advantage of the tiles | 1. High strength
2. Durable 3. Elegant 4. Easy to install |
Main Equipment
decoiler, main forming machine, hydraulic cutting, product stand, hydraulic system, electric system
| advantage of the machine | 1. Low noise
2. Stable 3. Easy to control |
| advantage of the tiles | 1. High strength
2. Durable 3. Elegant 4. Easy to install |
| Machine Components | ||
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
LCL Loading Packaging: Steel pallet and plywood case.
——FCL Loading Packaging: Steel pallet with plastic film.
——Shipping: by sea
FAQ
Q1. What’s your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
We are one of the best cold roll forming machinery and equipment manufacturers and suppliers in China.
