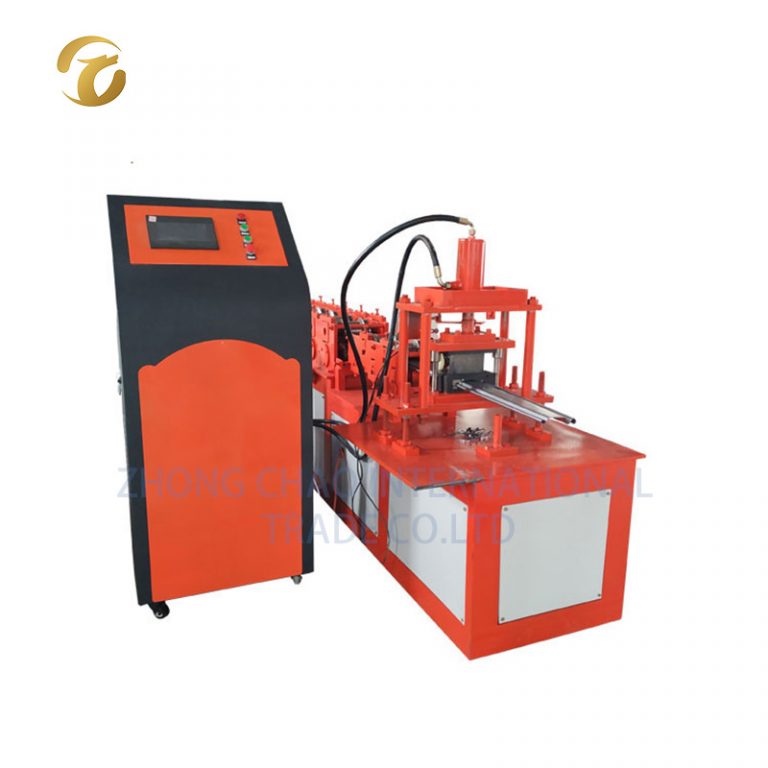

Shutter door roll forming machine 115-170

All of our machine are customized. Customer provide the slat details, we design machine according to customer’s requirements.Please feel free to contact us.

Chat Now

Shutter door roll forming machine 115-170

All of our machine are customized. Customer provide the slat details, we design machine according to customer’s requirements.Please feel free to contact us.

Chat Now

Shutter door roll forming machine 115-170

All of our machine are customized. Customer provide the slat details, we design machine according to customer’s requirements.Please feel free to contact us.

Chat Now

Product Details

Raw Materials Request

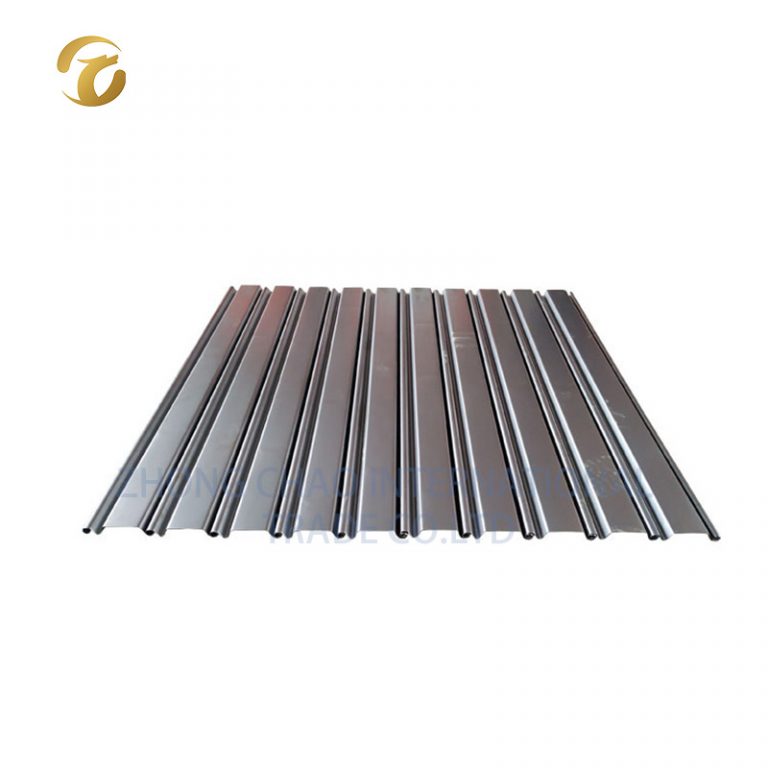

1.	Suitable Material	Colored Steel plate, Galvanized Board, Aluminum Plate
2.	Coil width	175mm
3.	Effective width	120mm
4.	Thickness	0.6-1.2mm

Turn/Cut/Console Quality Requirements

1.	Productivity	15-20m/min
2.	Cut Mode	Hydraulic forming after cutting off
3.	Cutter material	Cr12 Heat Treatment
4.	Electronic control system	PLC, Touch Screen, Encoding counter

Electronic control system

Description

The machine used well-known brand of Delta PLC control technology. To realize the automatic machine
The system to provide friendly man-machine interface, It can be set batch, workpiece length and number, etc.
Encoder count, count and length with function.
PLC touch screen adopt domestic famous brands.

Characteristic

Adopt touch screen control box through the man-machine interface, convenient operation, good appearance, consistent with the whole equipment.
The main components adopt France Schneider, It will stable performance, good reputation, global procurement.
Using a number of control technology, automation degree is high.
Encoder count, length accurately.

Main Components

Decoiler ————————————————– 1 Unit

Feeding guide —————————————— 1 Unit

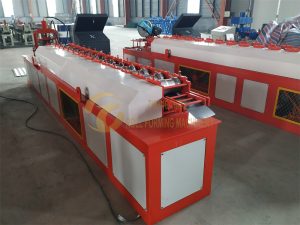

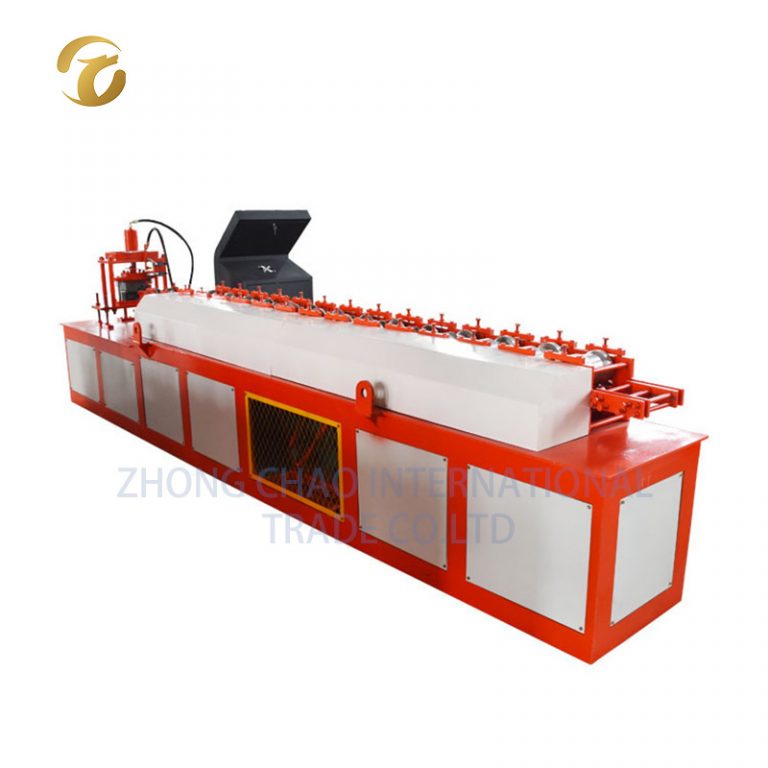

Main roll forming machine ————————— 1 Unit

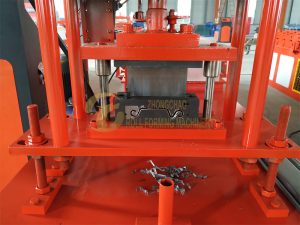

Hydraulic cutting device —————————— 1 Unit

Hydraulic Station ————————————— 1 Unit

PLC computer control ——————————– 1 Unit

Output table ———————————————- 1 Unit

Processing flow diagram of machine

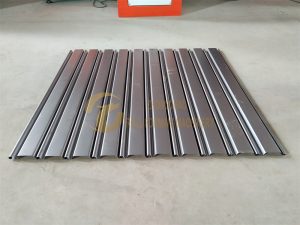

Manual decoiler→Feeding material into machine→Roll forming machine→Measure length→Hydraulic cutting→Finished Products

FAQ

Q1. What’s your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.

After we get down payment, we will arrange production. About 30-45 days for delivery.

Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.

Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.

Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.

Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
