Roofing Sheet And Glazed Tile Double Layer Roll Forming Machine For Custruction Material

Please contact us for more details.

Roofing Sheet And Glazed Tile Double Layer Roll Forming Machine For Custruction Material

Please contact us for more details.

Roofing Sheet And Glazed Tile Double Layer Roll Forming Machine For Custruction Material

Please contact us for more details.

Product Details

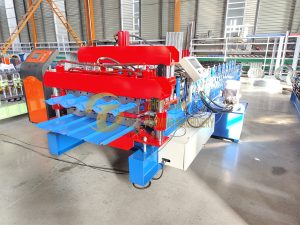

1. Roofing Sheet And Glazed Tile Double Layer Roll Forming Machine For Custruction Material

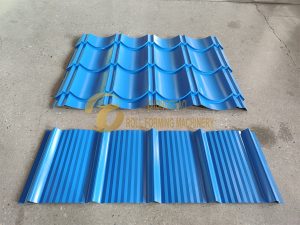

—- Double layer forming machines is one double layer machine can make two design roofing sheet.

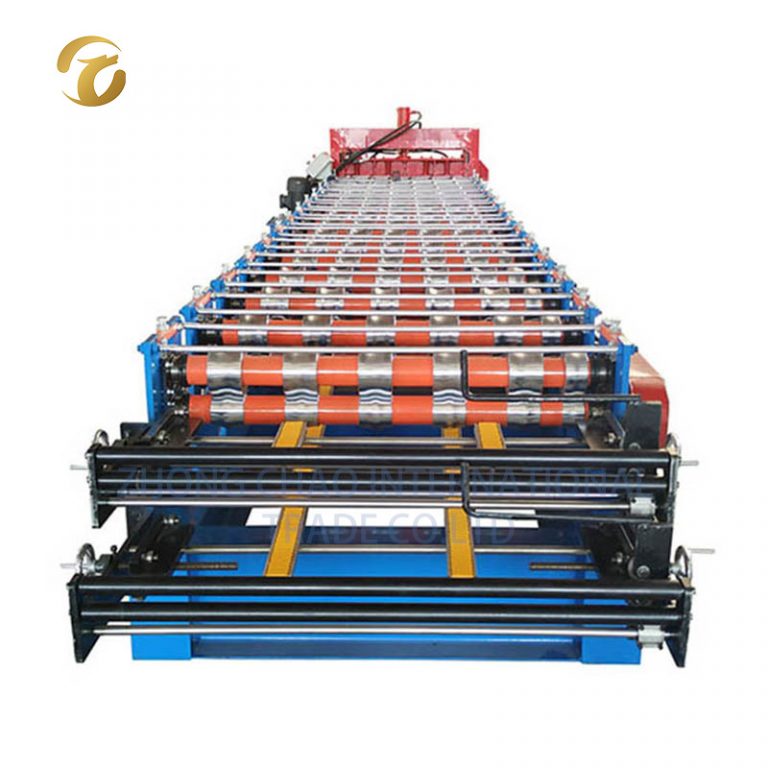

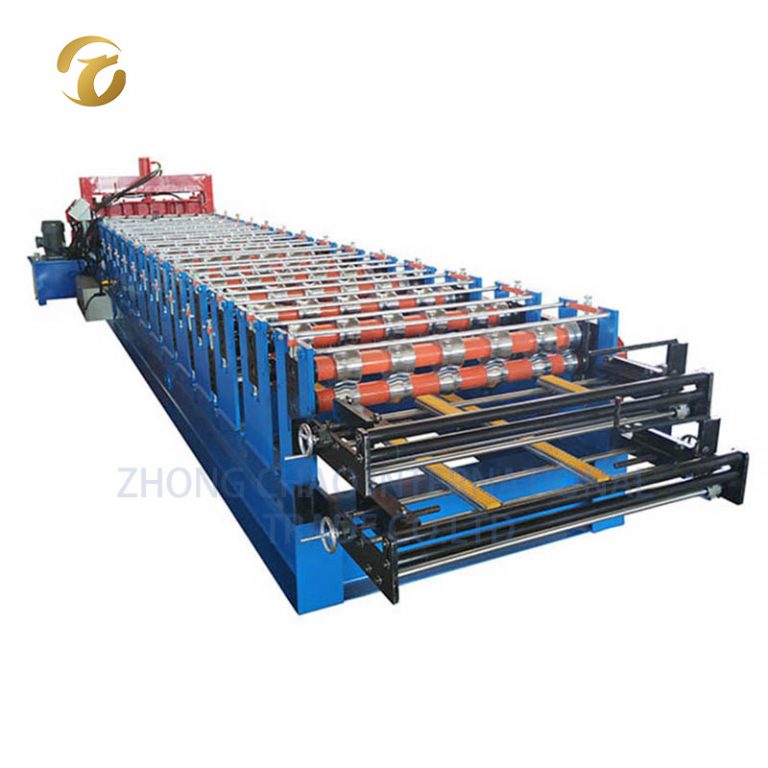

—- Double layer machine have two sets rollers share with one machine base, motor , hydraulic station, plc controller and cut frame.

—- Your profiles will be designed to double layer machines and quoted accordingly.

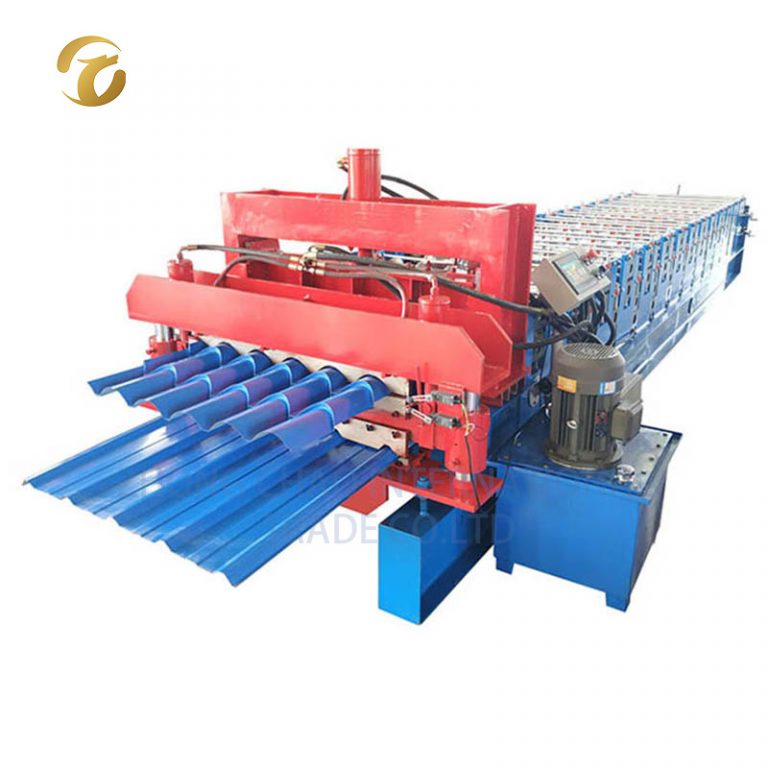

—- The cutting system can adopt hydraulic system and electric motor system.



2. Roofing Sheet And Glazed Tile Double Layer Roll Forming Machine For Custruction Material Parameters:



Machine Specifications
Weight About 4500kgs
Size About 7.8m x 1.7m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Colored Steel Coils
Thickness 0.3-0.7mm
Coil width 1220mm
Yield Strength 2350Mpa
Main Technical Parameters
Quantity of forming rollers stations 13-14
Diameter of forming rollers shafts 75mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power:  5.5kw
Hydraulic unit motor power:  4kw
Electric voltage According to customer’s requirement

Standard Configuration:

5 tons Manual decoiler 1 set
Main roll forming machine 1 set
Hydraulic pump system 1 set
PLC control system 1 set
Receiving Table 2 sets
Spare parts 1 box

Packaging and shipping

LCL Loading Packaging: Steel pallet and plywood case.

——FCL Loading Packaging: Steel pallet with plastic film.

——Shipping: by sea



FAQ

Q1. What’s your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.

After we get down payment, we will arrange production. About 30-45 days for delivery.

Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.

Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.

Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.

Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
