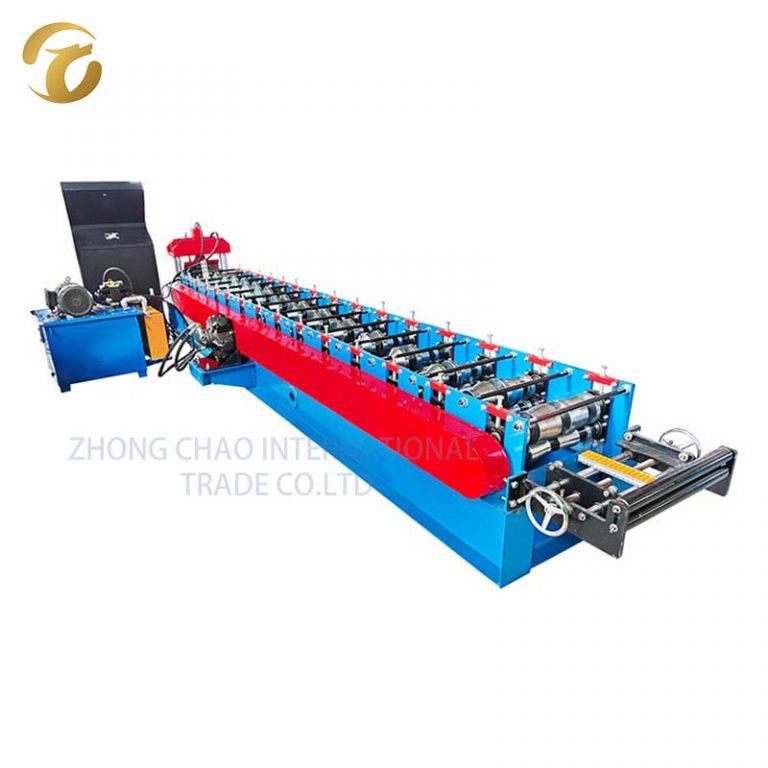

Ridge cap roll forming machine400

Please contact us for more details.

Chat Now

Ridge cap roll forming machine400

Please contact us for more details.

Chat Now

Ridge cap roll forming machine400

Please contact us for more details.

Chat Now

Product Details

Part details	Item Name	Specification
Material	Raw material	Galvanized steel or PPGI
Material	Thickness	0.3-0.8 mm
Machine	Roller station	14 or depend on customer’ drawing
	Shaft diameter	70 mm
	Shaft material	45# steel with 0.05mm chrome
	Roller material	45# steel with 0.05mm chrome
	Machine size	About 6×1.5×1.3 m
	Machine weight	About 3.5 ton
	Machine color	As customer’ request
	Working speed	3-8 m/min
Cutter	Hardness	50-65 HRC
	Cutting tolerance	± 1 mm
	Material	Cr 12
	Operate	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Main power	4 kw
	Pump power	3 kw
	Voltage	380v/50HZ,3P or customize as customer’ request

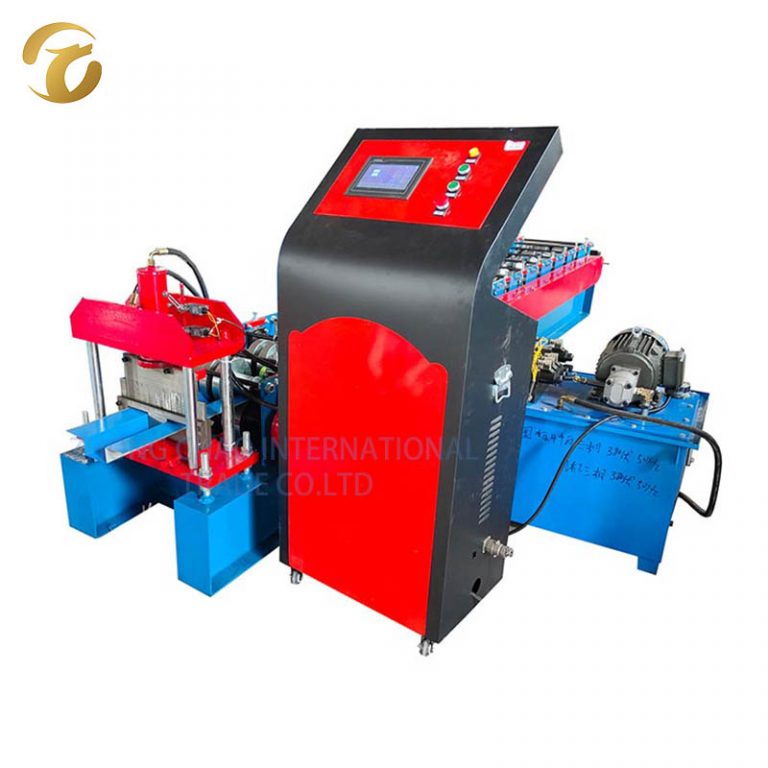

Control system	PLC brand	Delta made in Twaiwan
	Screen	Touchable screen
	Language	Chinese and English or add language as customer need
Decoiler	Operation	Manual
	Weight capicatity	3 ton
	Price	Free as gift
Receiving table	Operation	Manual
	Length	3 m
	Price	Free as gift

Essential details

Condition:: New

Type:: Tile Forming Machine

Tile Type:: Colored Steel

Use:: ROOF

Production Capacity:: 10-15 m/min

Place of Origin:: Hebei, China

Brand Name:: ST

Voltage:: 380V 50Hz 3phases

Dimension(L*W*H):: 4.5*0.8*1.5 m

Weight:: 2t

Warranty:: 2 years

After-sales Service Provided:: Online support, Free spare parts, Video technical support

Certification:: CE ISO

Color:: Blue

Control system:: PLC(imported Brand)

Plc:: Taiida

Raw material:: Colored Steel plate, galvanized board, Aluminum plate

Thickness:: 0.3-0.7 mm

Feeding width:: 333mm

Roller material:: high grade 45# steel

Roller stations:: 12 Rows

Cutting type:: Hydralic Cutting

Name:: Ridge Cup Roll Forming Machine

Ridge Cap Roll Forming Machine, it is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine, glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.

When you choose roof sheet corrugated roll forming machine, you had better learn popular shape in local, also raw material is an important considering data, if do not have good supplier in local, we can assist you purchase it in China together. we are professional factory and in this area for many years, any requires please contact us at any time!

Packaging and shipping

FAQ

Q1. What’s your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.

After we get down payment, we will arrange production. About 30-45 days for delivery.

Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.

Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.

Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.

Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
