1. The general process flow of production line
Manual decoiler ———–> main body of roll forming machine ———–> hydraulic cutting system ———–> PLC control system ———–> discharge table.
This machine line can work automatically by PLC control system, it is very easy to operate, welcome all customers from the world to inquiry.
2. Components of the roll forming production line
(1) Manual Decoiler ——- 1 set
Un-powered, manual control
Max Feeding width: 1250mm, coil ID range 450mm to 550mm
Bearing Capacity: 5 Tons
Weight: 180kgs

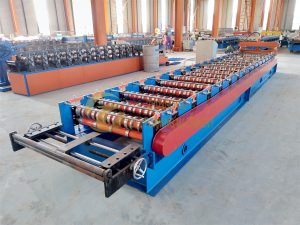

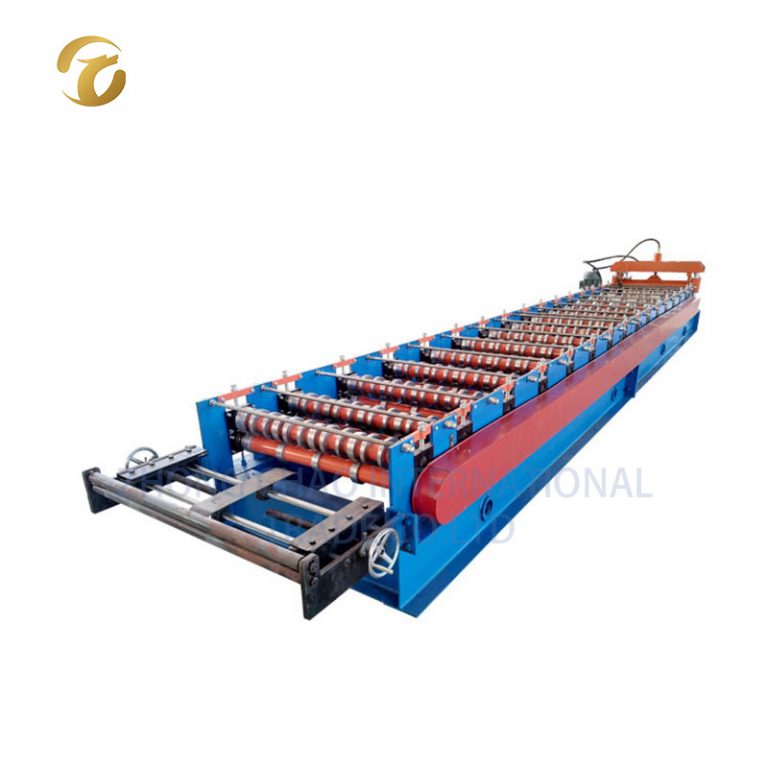

(2) Main body of machine
1. | Dimension | 6000*1800*1500mm |
2. | Hydraulic Motor Power | 5.5KW |
3. | Weight | 5Tons |
4. | Material Width | 1219mm |
5. | Effective Width | 1050mm |
6. | Material Thickness | 0.6-1.8mm |
7. | Forming Steps | 16 steps |

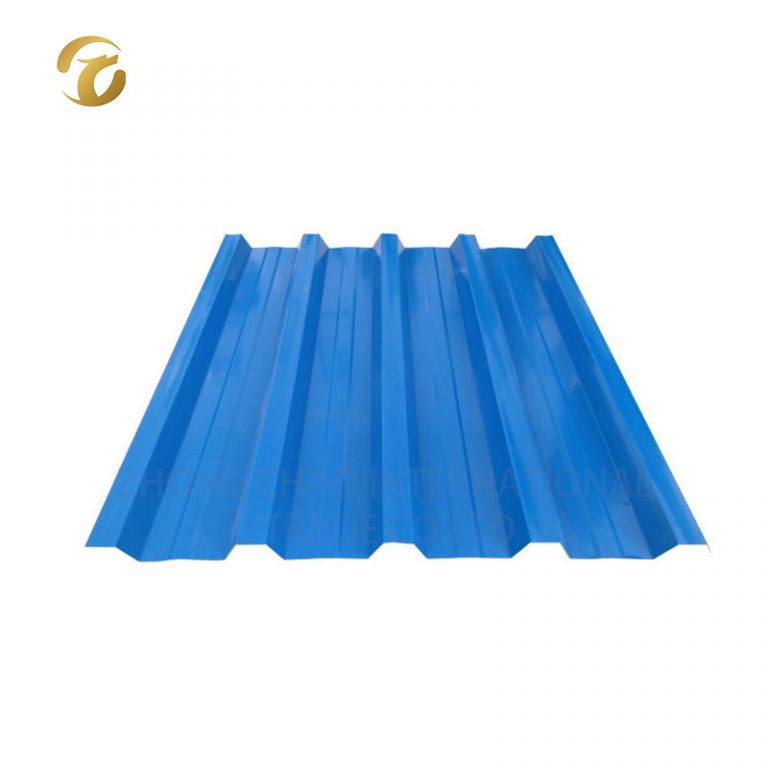

8. | Usage | Floor Decking Panel |

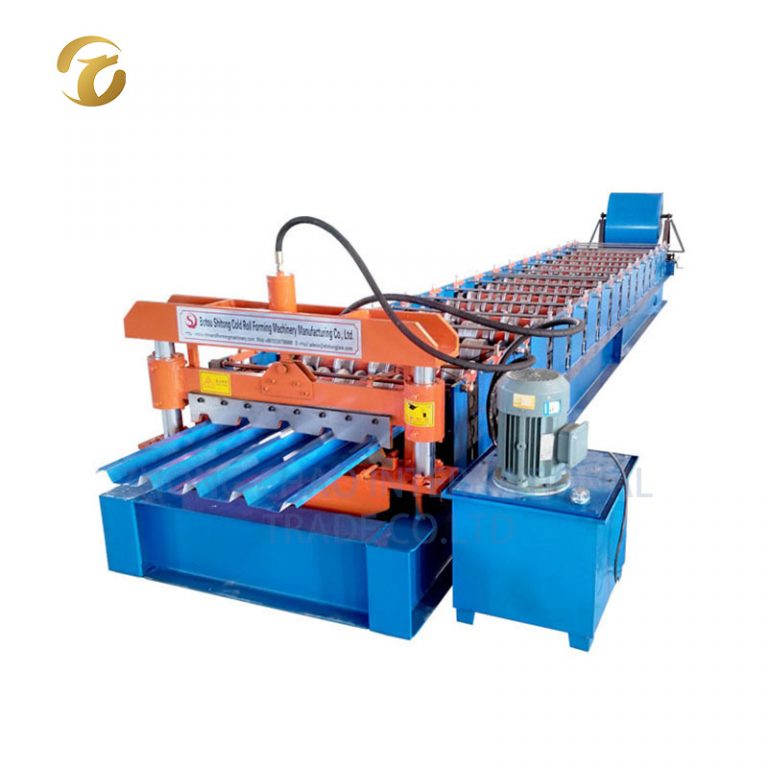

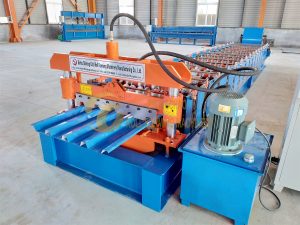

(3) Hydraulic Cutting device
It is controlled by gear wheel oil pump.
After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
The system includes: a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump motor: 4kw Hydraulic oil :46#
(4) PLC Control System
It adopts industrial computer to control.
The target piece’s length is adjustable and digit of it can be adjusted.
Computed mode has two Modes: automatic one and manual one. The system is easy to operate and use.
It contains programmer, transformer for the electronic machines and kits of every part.
Language screen:Chinese,English language .
(5) Discharge table
Un-powered, manual type
Function: collect the finished products
Dimension: 4000mm*1000mm*700mm
Weight: 80kgs
FAQ
Q1. What’s your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
We are one of the best cold roll forming machinery and equipment manufacturers and suppliers in China.
