| Dimension(l*w*h): | 9500mm*1550mm*1700mm | Use: | Roof |
|---|---|---|---|
| Tile Type: | Colored Glaze Steel | After-sales Service Provided: | Video Technical Support |
| Warranty: | 24 Months | Control System: | Totally Automatic PLC Taiwan Delta |
| High Light: |
Steel Roof Sheet Roll Forming Machine, PLC Three Layer Roll Forming Machine |
||

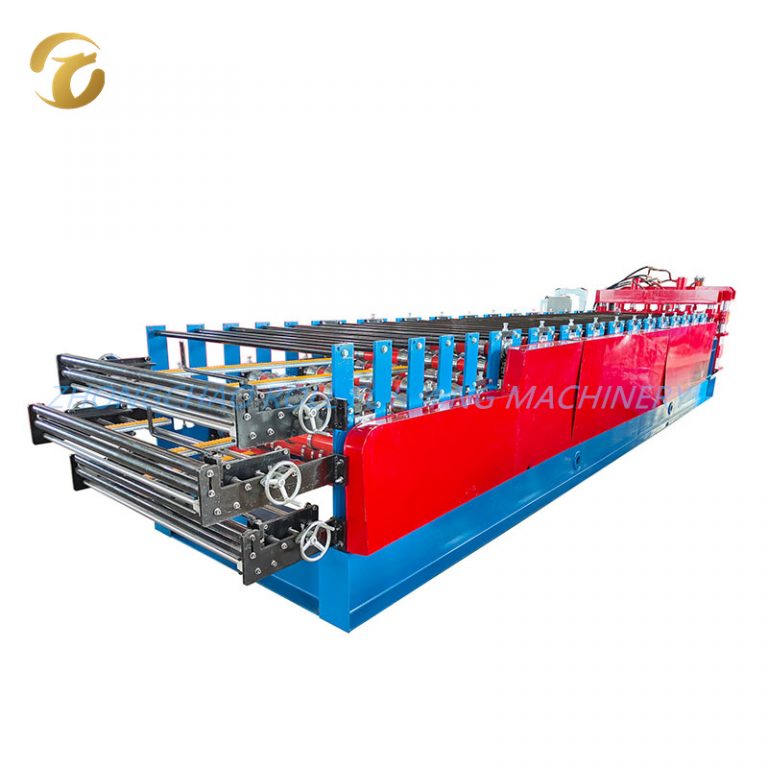

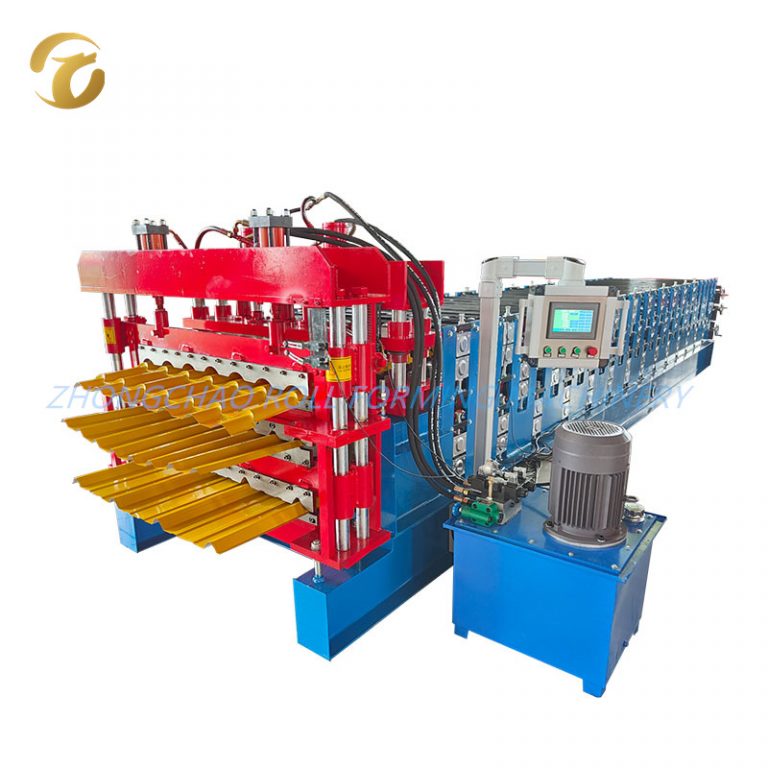

Steel Roof Sheet Three Layer Roll Forming Machine For Roof And Wall Sheet
Steel Roof Sheet Three Layer Roll Forming Machine For Roof And Wall Sheet

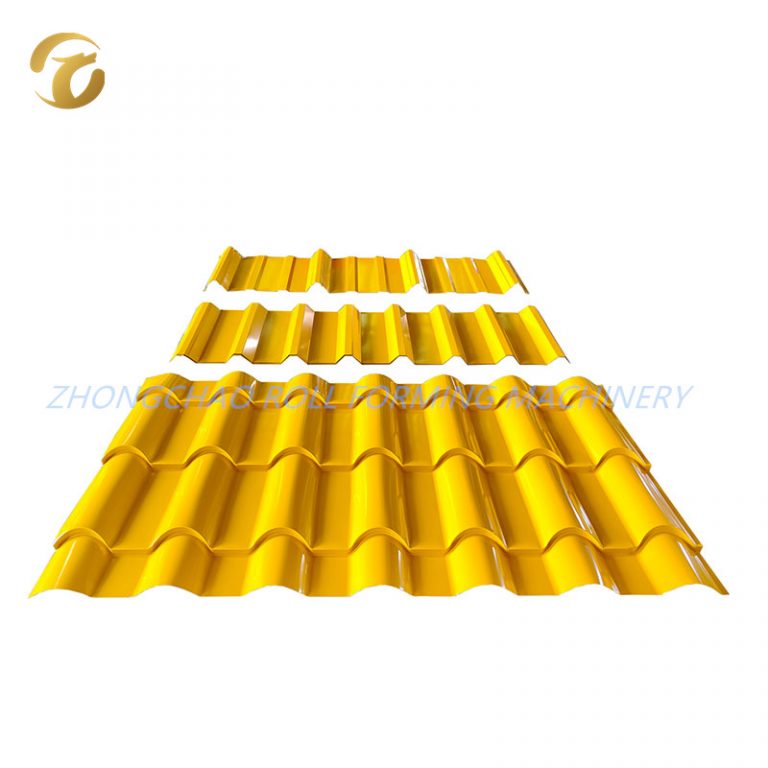

This is a three layers / triple layers metal sheet roll forming equipment, which one machine can produce three different types of roofing sheet, like trapezoidal ribs sheet, corrugated sheet, roof tile sheet or other types which customized, customer can request us to any combinations.
All the sheets produced by this three layer roll forming machine are widely used as rooing and wall of all kinds of buildings. The raw materials of the roofing sheet and wall sheet can be PPGI or GI.
Steel Roof Sheet Three Layer Roll Forming Machine For Roof And Wall Sheet Parameters
| Item | Name | Specifications |
| 1 | Decoiler | 1.Capacity:5 tons
2.Coil width:1250mm 3.Coil inner diameter:450-550mm 4.Main motor power:5.5 kw 5.Hydraulic power:5.5 kw 6.Add press arm to keep the coil from loosing. 7.Add pneumatic braking system 8.Add the speed sensor to keep the decoiler’s speed match with the roll former |
| 2 | Main roll former | 1.Roller station:13 station/15 stations/18 stations
2.Roller material:Cr 12 with quenched treatment 3.Shaft diameter:80mm 4.Shaft material:45# steel with tempered 5.Transmission:by chain 6.Motor power:7.5kw 7.Machine frame:350H steel welded 8.Cutting type:Hydraulic cutting 9.Cutting blade material:Cr12 with quenched treatment 10.Cutting tolerance:+/-1mm |
| 3 | Control system | 1.Control system:PLC
2.PLC brand:Siemens 3.Touch screen brand:Siemens 4.Button brand:Schneider 5.Encoder brand:Omron 6.Low voltage apparatus:Schneider |
| 4 | Hydraulic system | 1.Power:5.5kw
2.With fan cooling device 3.Brand:Yuken 4.Pressure:16 Mpa |
| 5 | Product table | 1.Length:3 m
2.Type:up-powered |
Multi Type Roofing Sheet Three Layer Roll Forming Machine Low Comsuption Working process
The complete line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep products accurate.
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 40 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 35 days after receiving deposit.
Warranty Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
