| Thickness Of Matrial: | 0.3-0.8 Mm | Forming Steps: | 15 Steps/14 Steps/13 Steps |
|---|---|---|---|
| Name: | Metal Roof Making Machine | Usage: | Steel Roofing And Wall Panel |
| Color: | As Required | Voltage: | As Required |
| High Light: |
ppgi three layer roll forming machine, glazed three layer roll forming machine, ppgi glazed tile roll forming machine |
||
three layer roofing sheet wall panel glazed tile cold roll forming machine

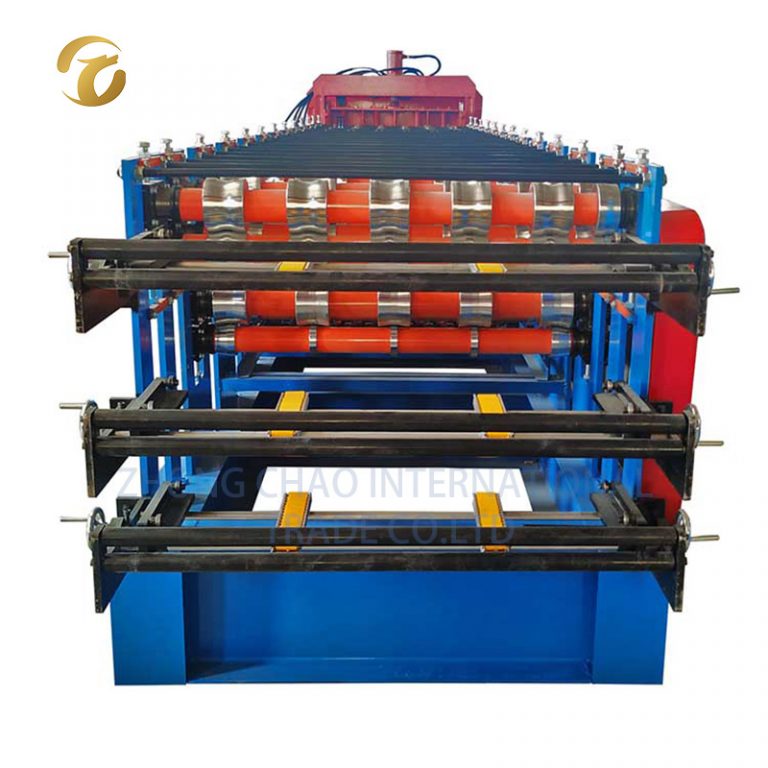

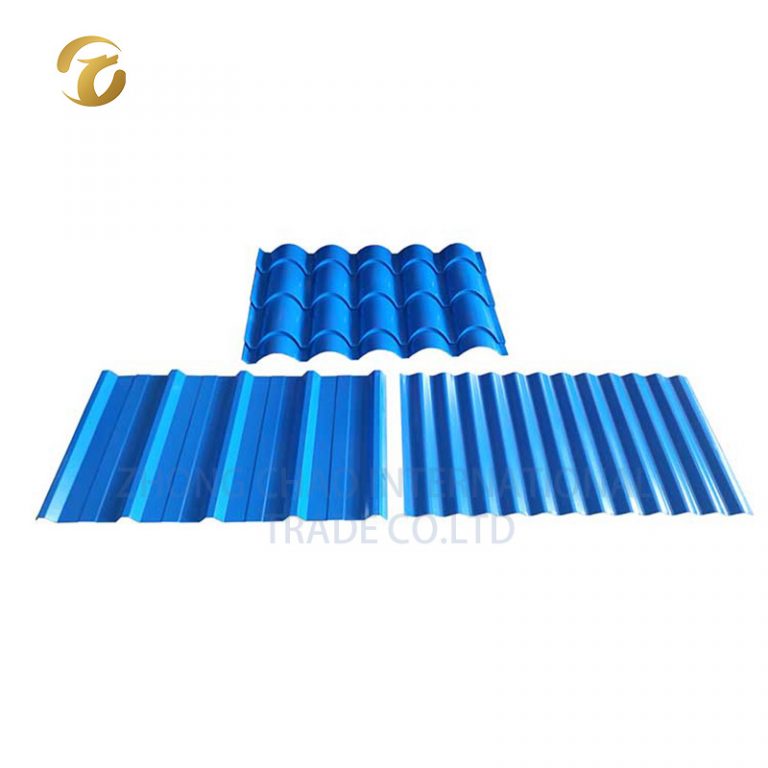

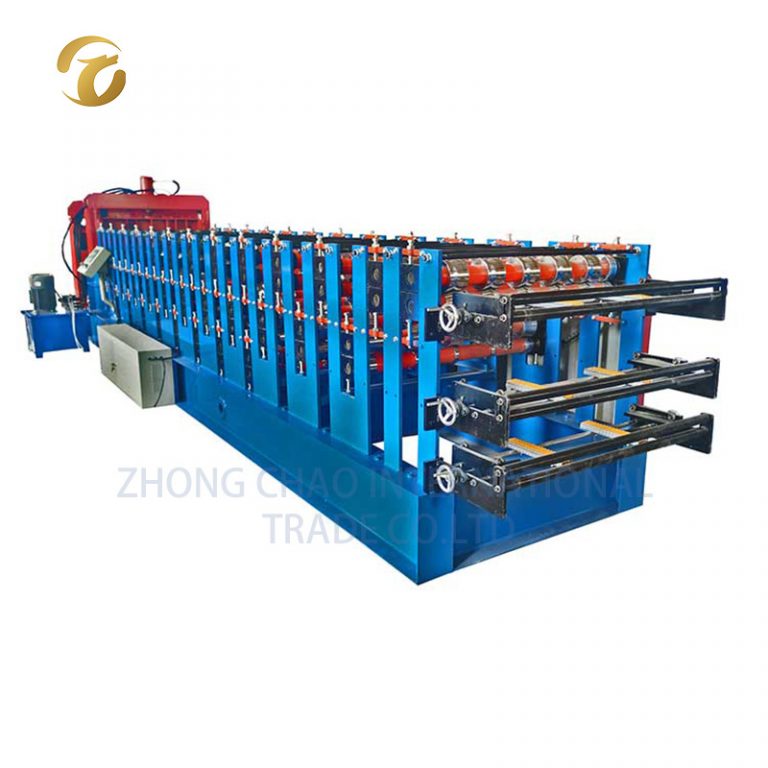

1. Three Profile Sheet Combination Three Layer Cold Roll Forming Machine for Roofing and Wall
— One machine have three layers rollers.
— We design the rollers according to customer’s requirement, tell me the profile you want.
— A hydraulic motor instead of the electric motor, the machine working speed is dobule time of before.
— The steel we adopted for machine is GB standard, ensure machine have a long working life.
2. Three Profile Sheet Combination Three Layer Cold Roll Forming Machine for Roofing and Wall parameters
|
High quality glazed tile IBR sheet double layer trapezoidal roof press making machine roll forming machinery
|
||||
|
1.Formed Material
|
PPGI,GI,AI |
Thickness:0.3-0.8mm
|
||
|
2.Decoiler
|
Hydraulic decoiler
|
Manual decoiler(will give you as free)
|
||
|
3.Main body
|
Roller station
|
15 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
350 H steel
|
|||
|
Drive
|
Double Chain transmission
|
|||
|
Dimension(L*W*H)
|
7500*1600*1600(customize)
|
|||
|
Weight
|
7.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Main Power
|
5.5KW
|
||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
8-12m/min 15-20m/min
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
| Machine Components | ||
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
Customized shape profile panel metal roll forming roof sheet making machine,it is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.
