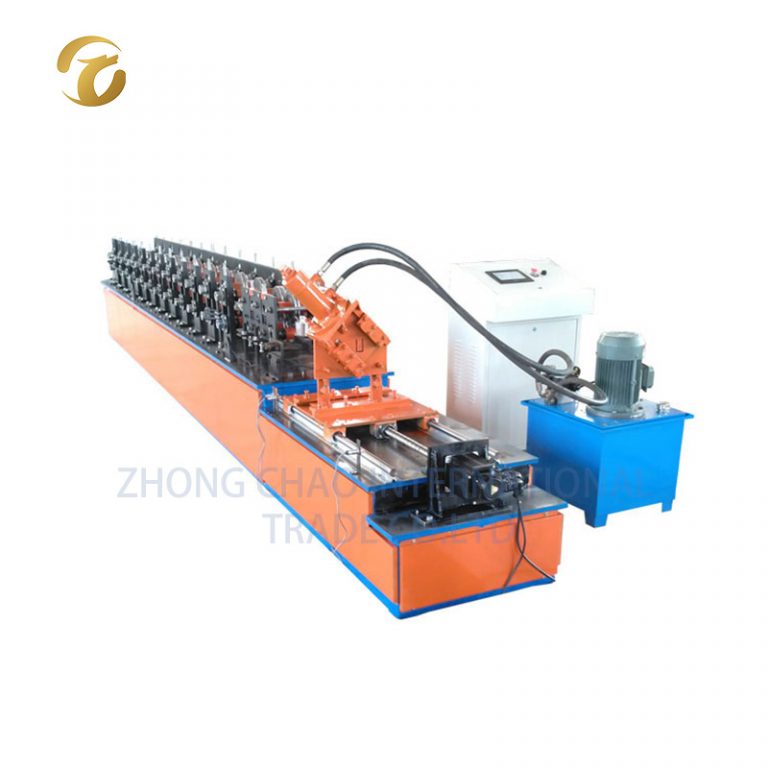

1. Brief introduction of the machine
—- We adopted a non stop cutting system to enhance the machine running speed.
—- Hydraulc drive motor provide strength power to make the machine running fast.
—- High precision machining parts ensure machine’s high speed.
—- Good service let you no any trouble.
2. Machine parameters
| Material | Colored steel sheet, galvanized steel sheet, aluminum sheet |
| Thickness of coil sheet | 1.0-2.0mm |
| Efficiency width | 25/30mm |
| Machine details | |
| Roller material | High grade NO. 45 forged steel with 0.05mm hard chrome plating |
| Shaft material | High grade NO. 45 carbon wrought steel |
| Cutting blade | Cr12 mould steel with quenched treatment |
| Diameter of shaft | 70mm or as your requirement |
| Main frame | 300 H steel |
| Forming steps | 16 stations |
| Productivity | 30-35m/min |
| Hydraulic station power | 5.5 KW |
| Hydraulic pressure | 10-12MPa |
| Appearance size | 7700mm*1500mm*1500mm |
| Hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirement |
| Cut Mode | Hydraulic forming after cutting off |
| Cutter materia | Cr12 Heat Treatment |
| Electronic control system | PLC, Touch Screen, Encoding counter |
| Color | Blue, green or yellow or as your requirement |
| Rolling material | 45# steel,roller surfaces polishing, hard plating |
| Machine Components | ||
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
1. Low cost, light weight but high strength, short building period, and re-cycle use
2. Save material , no waste.
3. Easy operation, low maintenance cost
4. Infinite sizing(any size within machine range),help to save material
5. Optional Punch hole at any position of purlin web side and flange side
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 20 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 35 days after receiving deposit.
Warranty: Two years, and we will provide technical support for wholelife of the equipment. If some parts of machine broken within 2 years, we will give customer the spare parts for free. (include chain, bearing, roller, oil pipe, counting wheel) If more than 2 years, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
