Please contact us for more details.

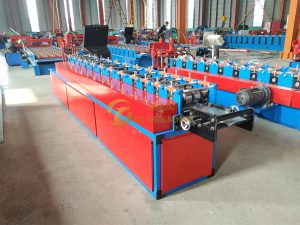

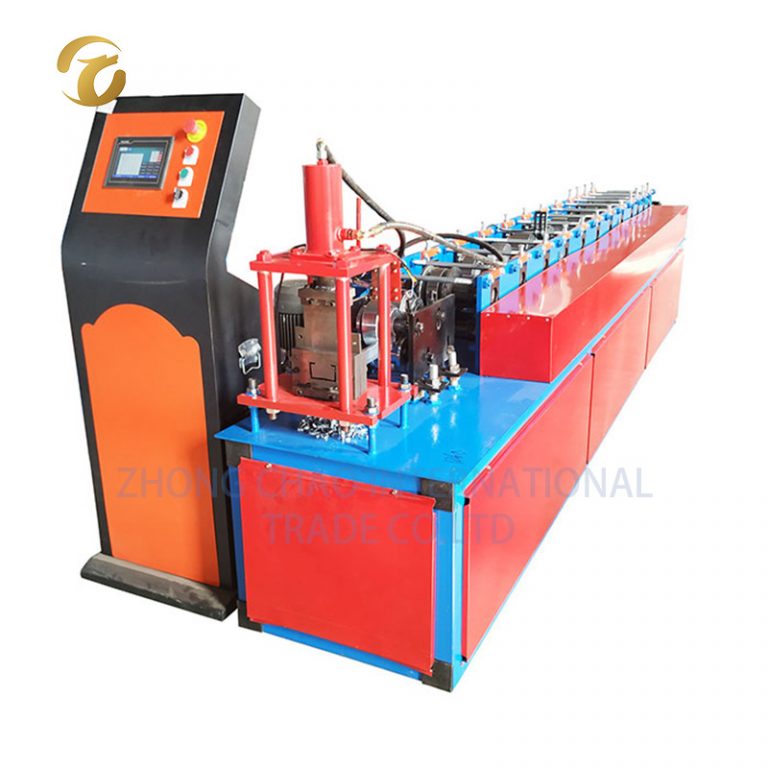

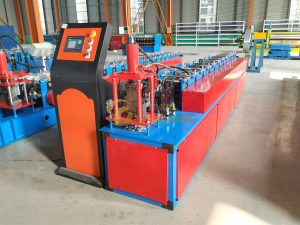

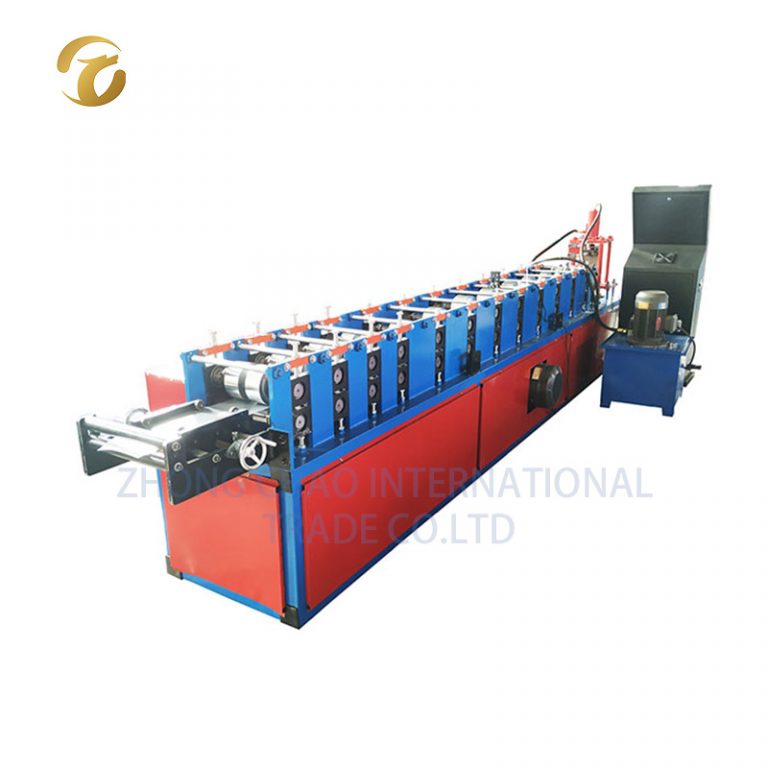

Galvanized steel C shape steel keel roll forming machine with hydraulic punching system
— Several group continuous forming rollers let the galvanized steel easy forming.
— During forming, a hydraulic punch mold can punch holes on the frame.
— A PLC control program can control the forming and punching coordinately.

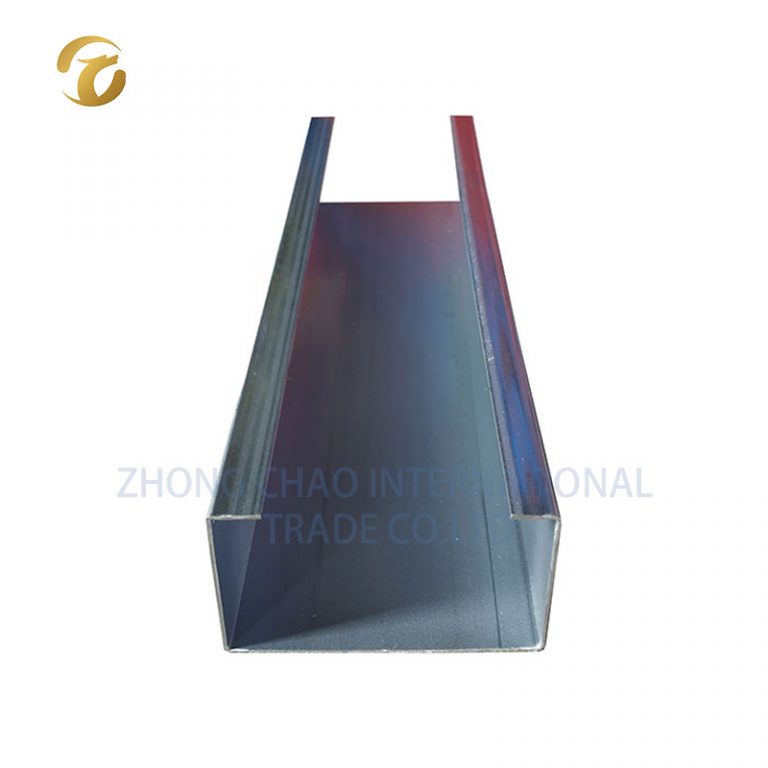

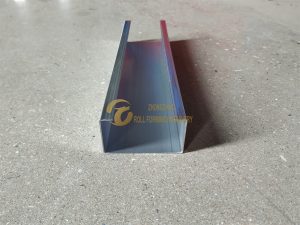

— The finally products use for steel construction frames.

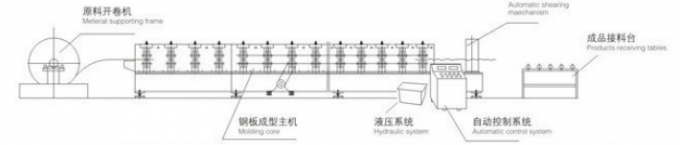

Processing Flow Diagram of Machine
Galvanized steel C shape steel keel roll forming machine with hydraulic punching system parameters
| Suitable Material | Material | Steel, galvanized steel |
| Thickness | 0.28-0.4 mm | |
| Material of rollers | High grade 45# forged steel, surface hard chromium plating | |
| Rows of rollers | 12 stations | |
| Material of shafts | High grade 45# forged steel | |
| Diameter of shafts | 50 mm | |
| Material of blade | Cr12 Heat Treatment | |
| Speed | 10-15 m/min | |
| Side plate thickness | 16 mm | |
| Total power | 4 kw | |
| Voltage | 380 V 50 HZ 3 Phase | |
| Appearance size (About) | 5000mm*800mm*1500mm | |
| Weight(About) | 1.5 tons | |
| Electronic control system | PLC + Touch Screen | |
| Machine Components | ||
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 20 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 35 days after receiving deposit.
Warranty: Two years, and we will provide technical support for wholelife of the equipment. If some parts of machine broken within 2 years, we will give customer the spare parts for free. (include chain, bearing, roller, oil pipe, counting wheel) If more than 2 years, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
FAQ
Q1. What’s your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
We are one of the best cold roll forming machinery and equipment manufacturers and suppliers in China.
