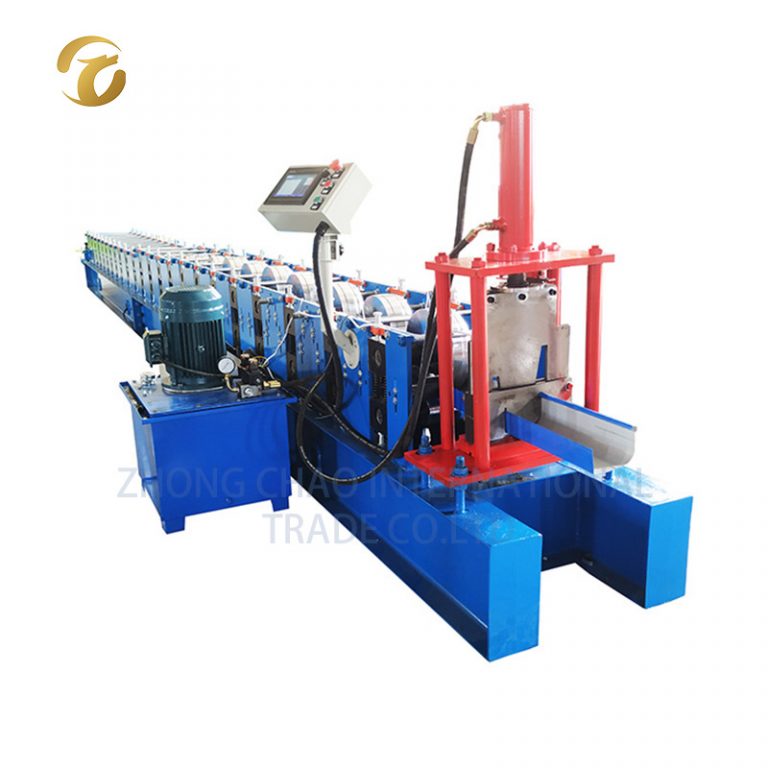

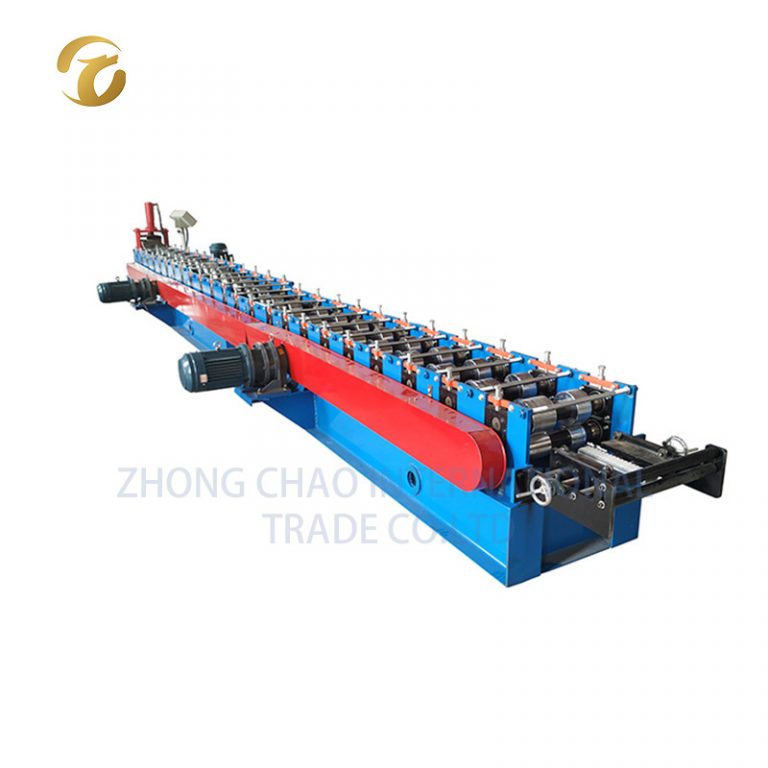

Hydraulic System Automatic Gutter Roll Forming Machine Customized

Please contact us for more details.

Hydraulic System Automatic Gutter Roll Forming Machine Customized

Please contact us for more details.

Hydraulic System Automatic Gutter Roll Forming Machine Customized

Please contact us for more details.

Product Details

This machine takes GI/PPGI as raw material, through a series steps and can produce the barrel type roofing sheets.
The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.

3. Working Flow:

Decoiler——-Feeding——-Roll forming——-Cutting——Finished product

4. Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

5. Technical parameters:

Raw material
material spec sheet, galvanized steel sheet, aluminum sheet
Input width 300mm
thickness of coil sheet 0.5-0.
Machine details
roller material high grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material high grade NO. 45 carbon wrought steel
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 80mm or as your requirement
main frame 300 H steel
forming steps 18 rows
productivity 20-25 m/min
hydraulic station power 22KW
hydraulic pressure 10-12MPa
controlling system famous PLC computer control
material of cutting table Cr 12 mould steel with quenched treatment
Packaging and shipping


FAQ

Q1. What’s your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.

After we get down payment, we will arrange production. About 30-45 days for delivery.

Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.

Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.

Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.

Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
