Product introduction:

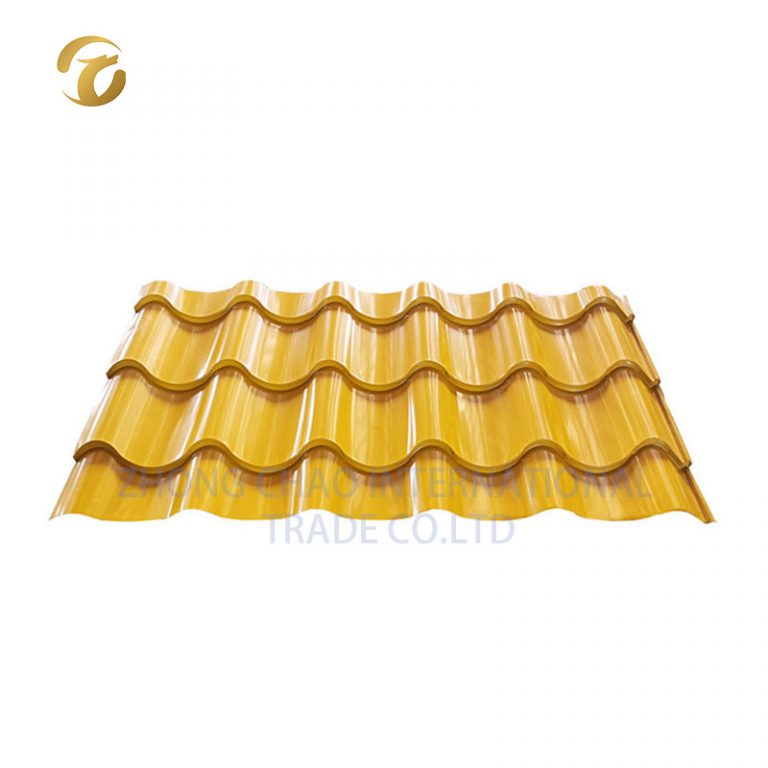

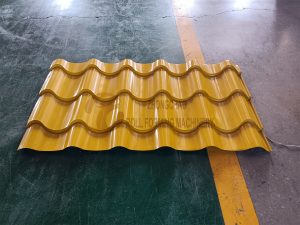

Glazed tile has a beautiful appearance, simple and elegant, sophisticated styling, noble taste and other characteristics, can be widely used in garden plants, scenic spots, pavilions, hotels, villas, galleries, resorts, home and other buildings, and beautiful and durable.

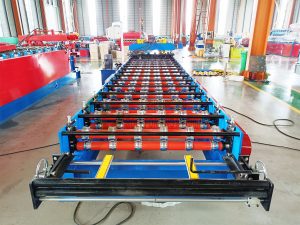

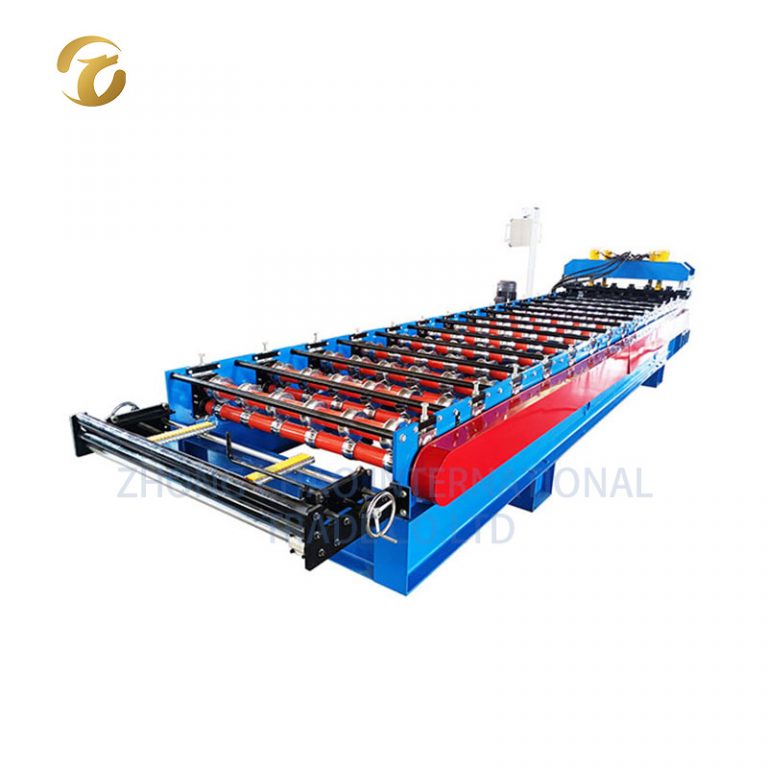

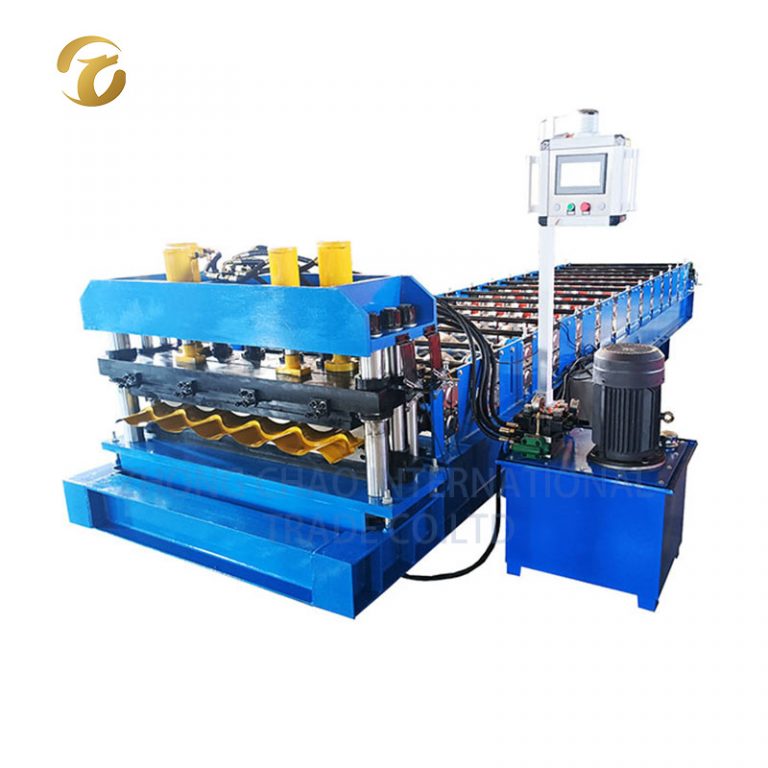

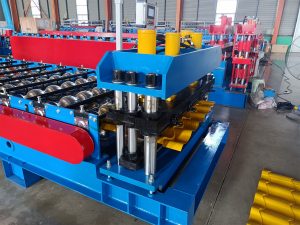

The glazed tile roll forming machine products beautiful appearance of smooth, paint pattern uniform, high strength, durable, widely used in industrial and civil buildings, such as factories, warehouses, machine garages, hangars, stadiums, exhibition halls, theaters and other room surfaces and wall.
Characteristic
1. Is made of high strength steel plate for the base material,
and the most advanced design and roll forming. It has excellent structural properties.
2. Glazed tile roll forming machine use less power, saving energy consumption, reducing the cost of production
3. High efficiency, energy saving, production speed, can be used continuously
4. Small volume, light weight, mobile transportation is convenient, small footprint.
Specifications
No
|
Item
|
Data
|
1
|
Raw material width
|
1220mm
|
2 | efficiency width | 1000mm |
3
|
Raw material
|
PPGL/GL
|
4
|
Material thickness
|
0.3-0.6mm or customized
|
5
|
Forming roller material
|
45# steel plated with chrome
|
6
|
Shaft diameter
|
70 mm
|
7
|
Forming roll station
|
14rollers
|
8
|
Main motor power
|
4KW
|
9
|
Control system
|
PLC control
|
10
|
Language
|
chinese , english or as your customzied
|
11
|
Machine color
|
red and bule or as your customized
|
12 | voltage | 380v 50hz 3 phases or as your requirements |
Product packaging
Q1. What’s your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
We are one of the best cold roll forming machinery and equipment manufacturers and suppliers in China.
