Know about our machine

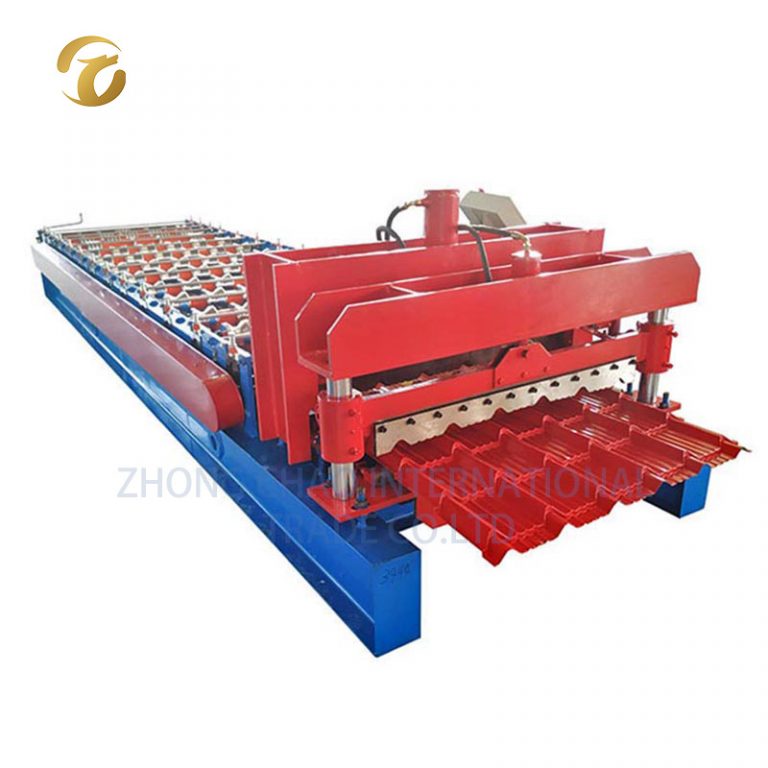

The roof tile roll forming machine production line includes manual decoiler, main body of roll forming machine, hydraulic cutting system, PLC control system and discharge table. The users can set order as per their requirement to produce the special pieces and length products. This machine line can work automatically by PLC control system. It is easy to operate and running stably.
PLC control system provide automatic working program, client can set all the datum in the hand touch screen, then machine will produce the tile length and quantity according to your requirement.
2. Specifications of the roll forming production line

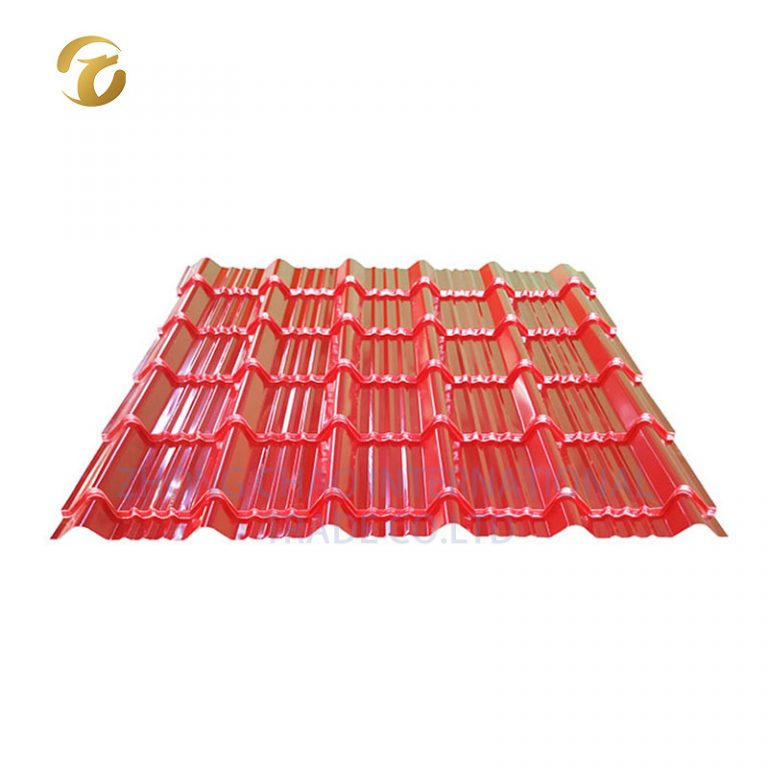

Name of Roll Forming Machine | Metal sheet glazed tile roll forming machine color steel tile roofing production line | |
1 | Suitable raw material | PPGI/PPGL/GI/GL Steel Coils |
2 | Thickness of coil sheet | 0.3-0.8mm |
3 | Feeding Coil width | 1200mm |
4 | Effective width | 960mm |
5 | Under frame | 350H steel frame |
6 | Diameter of Soild shaft | 75mm, high grade 45# steel |
7 | Roller | High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment, |
8 | Thickness of middle plate | 16mm |
9 | Forming stations | 15 stations |
10 | Drive type | By chains |
11 | Power of main motor | 5.5kw, Lichao, Shanghai |
12 | Power of pump station | 5.5kw, Lichao, Shanghai |
13 | Forming speed | About 3-5m/min |
14 | Hydraulic cutting | Controlled by PLC |
15 | PLC | Mitsubishi, Japan |
16 | Material of cutting blade | Cr12Mov, quenching 58-62℃ |
17 | Frequency converter | It has the advantage of slowing down before cutting, to
ensure thelength accuracy(±1mm, far better than industrial standard ±3mm). |
18 | Switch | CHNT |
FAQ
Q1. What’s your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
