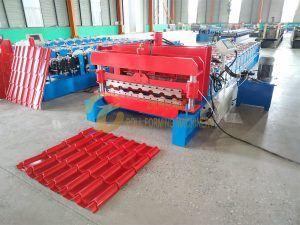

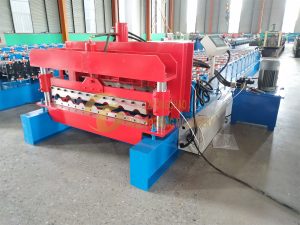

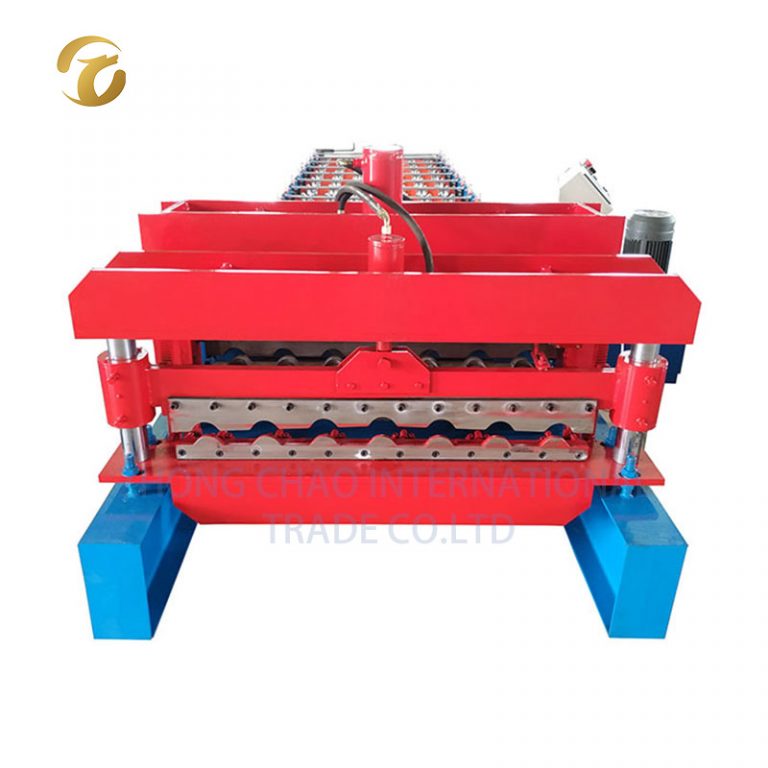

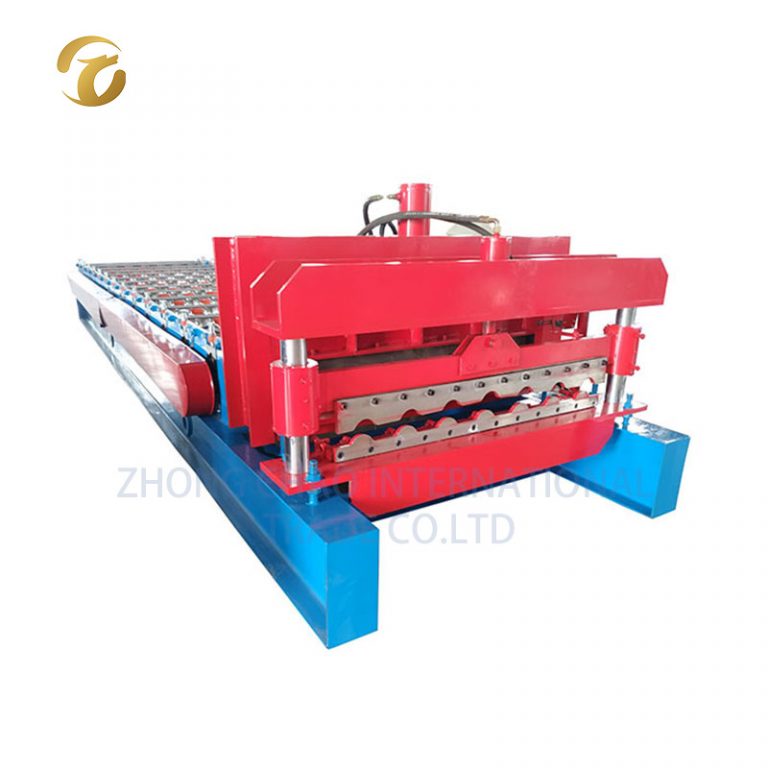

Glazed roof tile roll forming machine 960

All of our machine are customized. Customer provide the slat details, we design machine according to customer’s requirements.Please feel free to contact us.

Glazed roof tile roll forming machine 960

All of our machine are customized. Customer provide the slat details, we design machine according to customer’s requirements.Please feel free to contact us.

Glazed roof tile roll forming machine 960

All of our machine are customized. Customer provide the slat details, we design machine according to customer’s requirements.Please feel free to contact us.

Product Details

Quick Details

Warranty:                                    12months
Type:                                           Tile Forming Machine
Production Capacity:                   3-5m/min
Certification:                                CE&ISO
After-sales Service Provided:      Online support, Engineers available to service machinery overseas
Condition:                                    New
Tile Type:                                     Colored Steel
Use:                                             Roof
Place of Origin:                            Hebei, China (Mainland)
Brand Name:                               SHITONG
Voltage:                                       380v
Dimension(L*W*H):                     6700*1500*1500mm
Weight:                                        About 4.5t

Thickness:                                   0.3–0.8mm

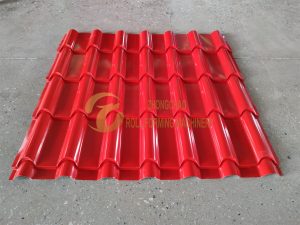

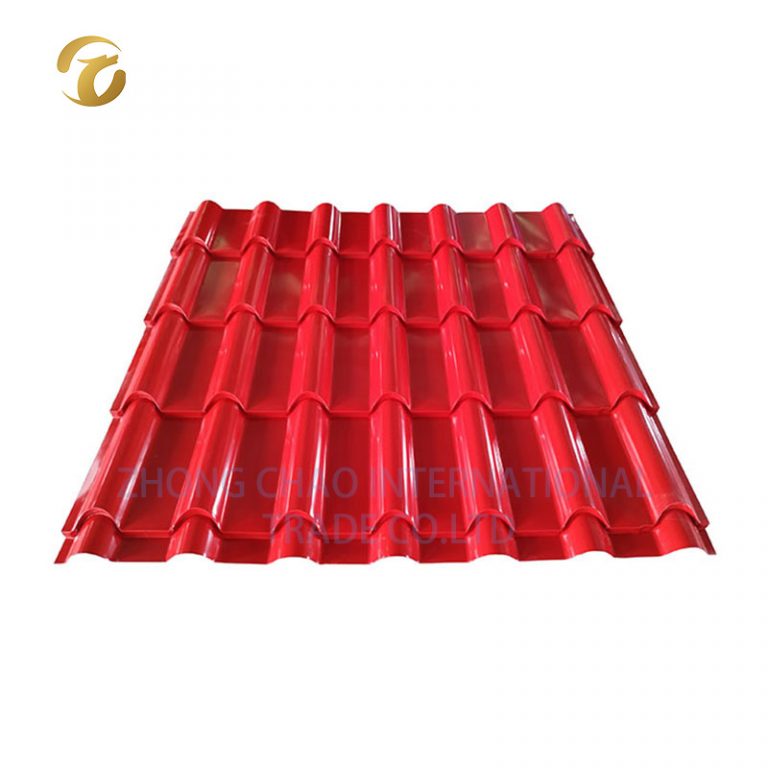

Profiles:                                       Glazed tile
Color:                                          Customer Requirement
Diameter of shaft (solid shaft) :   80mm
Service:                                       12month

Product Description
Product Name Big Bamboo Tile Roll Forming Machine
Material Applicable material GI(Galvanized Steel Sheet)/PPGI
Material thickness 0.12-0.5mm
With yield strength 235-345-550Mpa Yield Strength
Machine Base frame H400/450 type steel
Roller material 45# steel
Hardness Heat treatment to HRC58-62 degree
Roller station 18 o r22steps to form
Shaft diameter 80mm/75mm
Machine size 10000*2000*2000mm
Machine weight 10000
Machine color 2.Blue(RAL5015)+ orange (RAL2004), as per the seller factory’s color standard
Working speed 15m/min
Cutter Hardness Heat treatment to HRC58-62 degree
Cutting tolerance ≤±1mm
Material Cr12MoV(= Z200C12 with at least one million times of cutting life)
Operate By PLC
Power Driving way Gear/Sprocket transmission,
Main motor 7.5KW
Pump motor for cutter 3.0kw
Voltage 220/380/415/480V- 60/50Hz/3Ph –should be confirmed
PLC Control System Inverter Schneider Electric/DELTA (Taiwan brand)
Touch screen WEINVIEW(Taiwan brand)
Encoder KOYO (Japan brand) or OMRON (Japan brand
Cut-to-length tolerance ≤±1mm
Control voltage 24V
Automatic Stacker and Printer Options

Product packaging


FAQ

Q1. What’s your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.

After we get down payment, we will arrange production. About 30-45 days for delivery.

Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.

Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.

Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.

Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
