All of our machine are customized. Customer provide the slat details, we design machine according to customer’s requirements.Please feel free to contact us.
Warranty: 12months
Type: Tile Forming Machine
Production Capacity: 3-5m/min
Certification: CE&ISO
After-sales Service Provided: Online support, Engineers available to service machinery overseas
Condition: New
Tile Type: Colored Steel
Use: Roof
Place of Origin: Hebei, China (Mainland)
Brand Name: SHITONG
Voltage: 380v
Dimension(L*W*H): 6700*1500*1500mm
Weight: About 4.5t

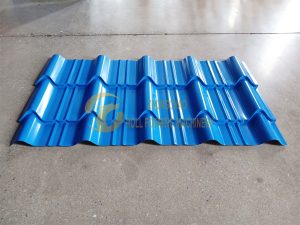

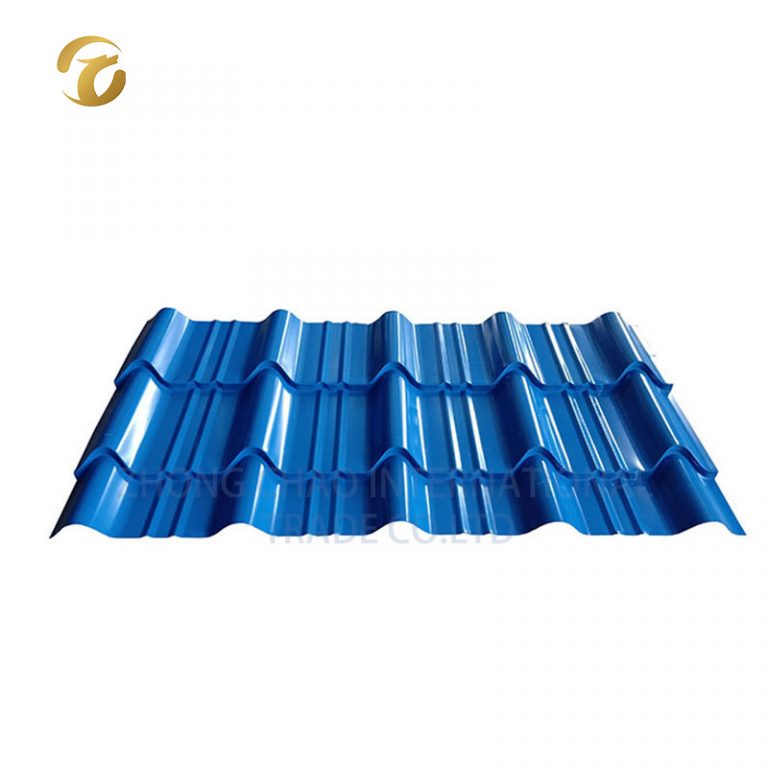

Profiles: Glazed tile
Color: Customer Requirement
Diameter of shaft (solid shaft) : 80mm
Service: 12mont

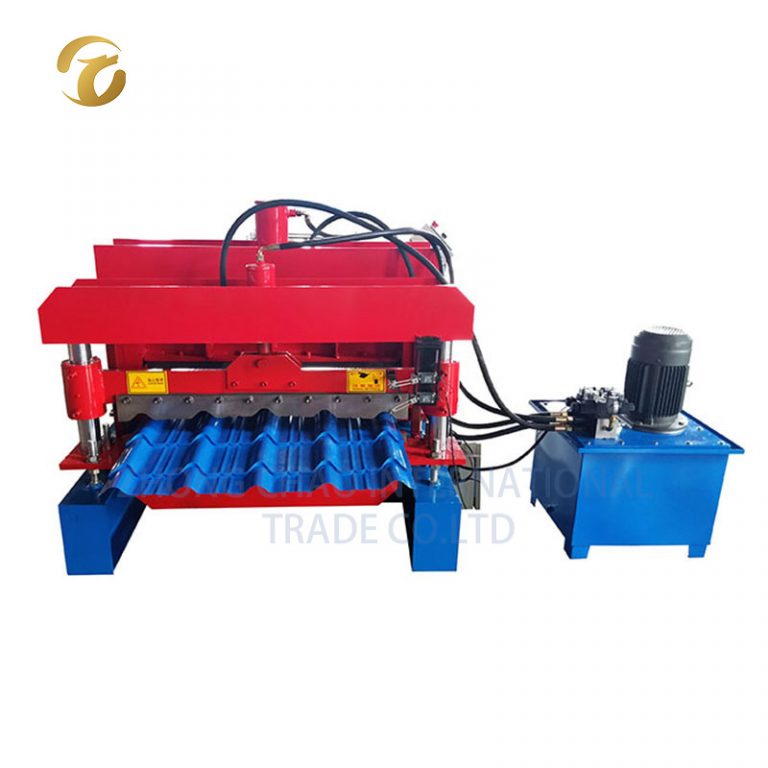

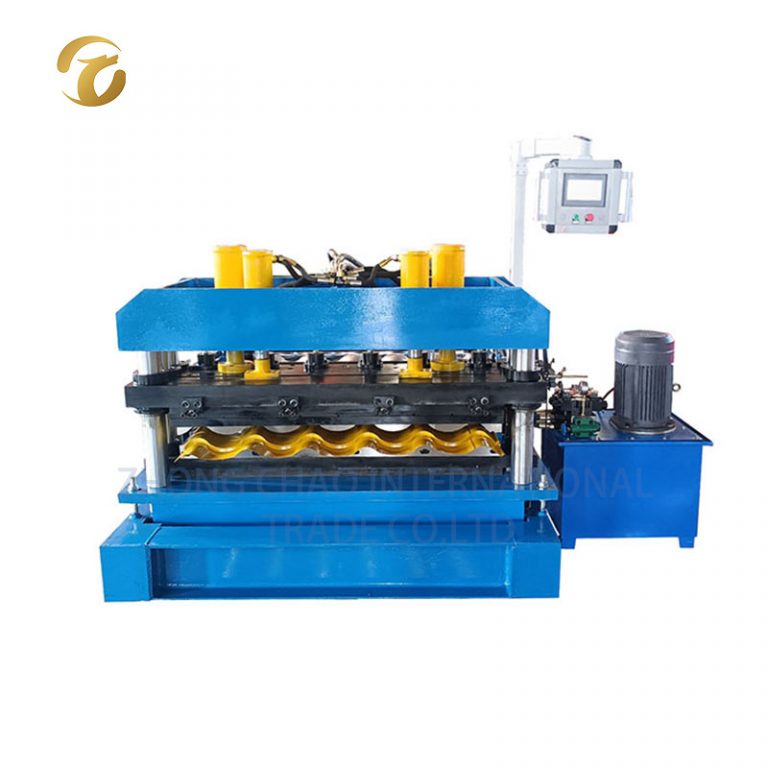

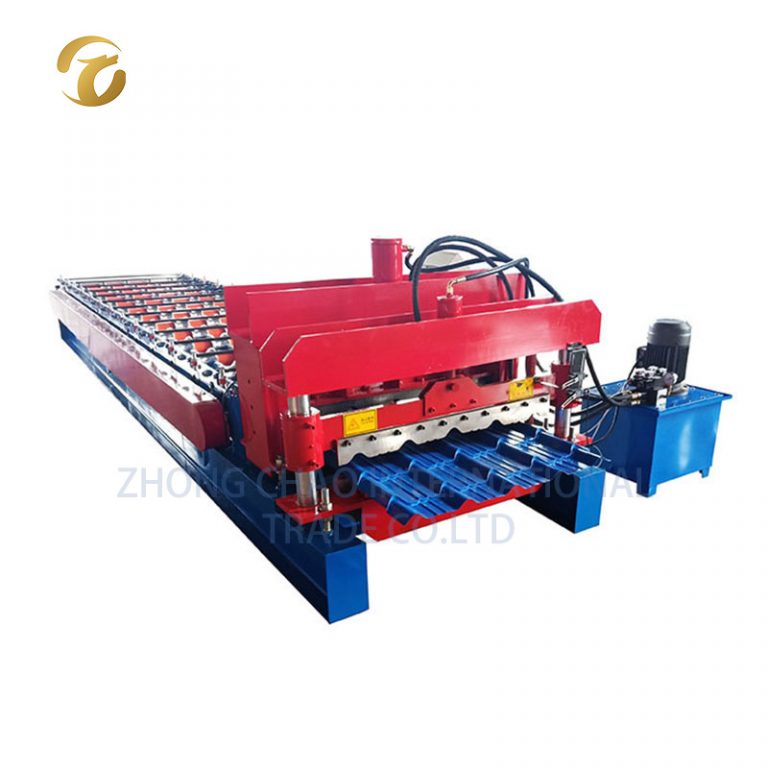

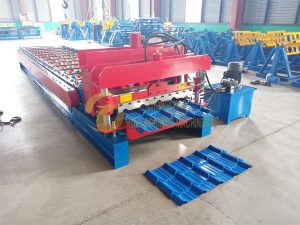

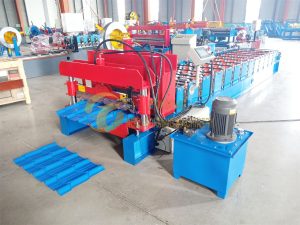

| Product Name | Big Bamboo Tile Roll Forming Machine | |
| Material | Applicable material | GI(Galvanized Steel Sheet)/PPGI |
| Material thickness | 0.12-0.5mm | |
| With yield strength | 235-345-550Mpa Yield Strength | |
| Machine | Base frame | H400/450 type steel |
| Roller material | 45# steel | |
| Hardness | Heat treatment to HRC58-62 degree | |
| Roller station | 18 o r22steps to form | |
| Shaft diameter | 80mm/75mm | |
| Machine size | 10000*2000*2000mm | |
| Machine weight | 10000 | |
| Machine color | 2.Blue(RAL5015)+ orange (RAL2004), as per the seller factory’s color standard | |
| Working speed | 15m/min | |
| Cutter | Hardness | Heat treatment to HRC58-62 degree |
| Cutting tolerance | ≤±1mm | |
| Material | Cr12MoV(= Z200C12 with at least one million times of cutting life) | |
| Operate | By PLC | |
| Power | Driving way | Gear/Sprocket transmission, |
| Main motor | 7.5KW | |
| Pump motor for cutter | 3.0kw | |
| Voltage | 220/380/415/480V- 60/50Hz/3Ph –should be confirmed | |
| PLC Control System | Inverter | Schneider Electric/DELTA (Taiwan brand) |
| Touch screen | WEINVIEW(Taiwan brand) | |
| Encoder | KOYO (Japan brand) or OMRON (Japan brand | |
| Cut-to-length tolerance | ≤±1mm | |
| Control voltage | 24V | |
| Automatic Stacker and Printer | Options | |
FAQ
Q1. What’s your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
We are one of the best cold roll forming machinery and equipment manufacturers and suppliers in China.
