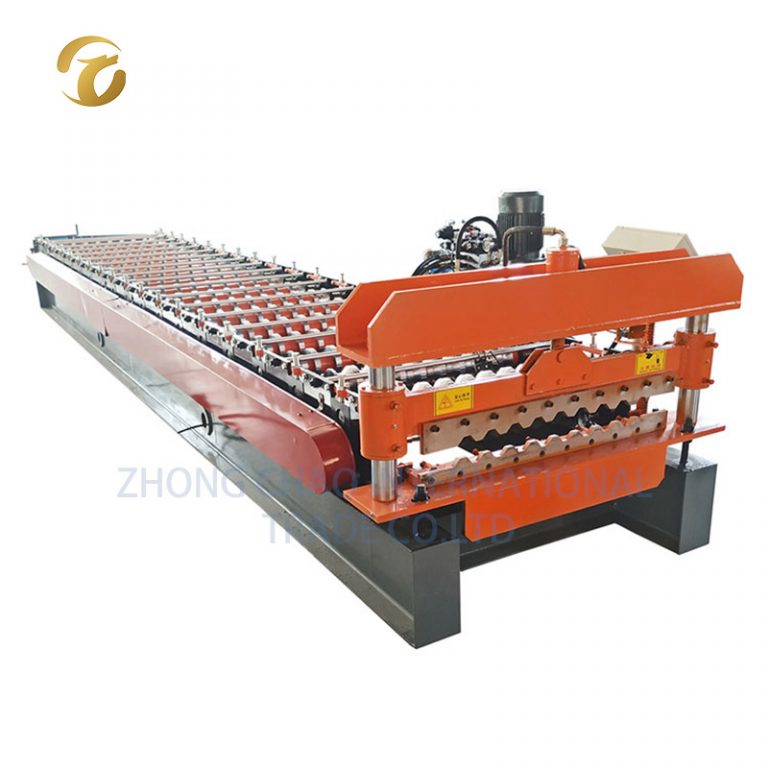

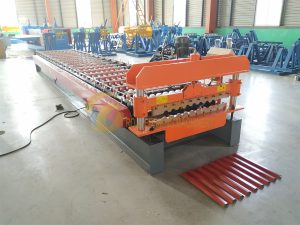

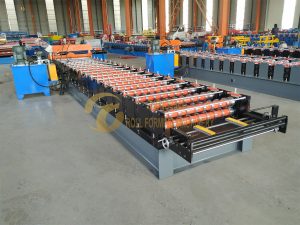

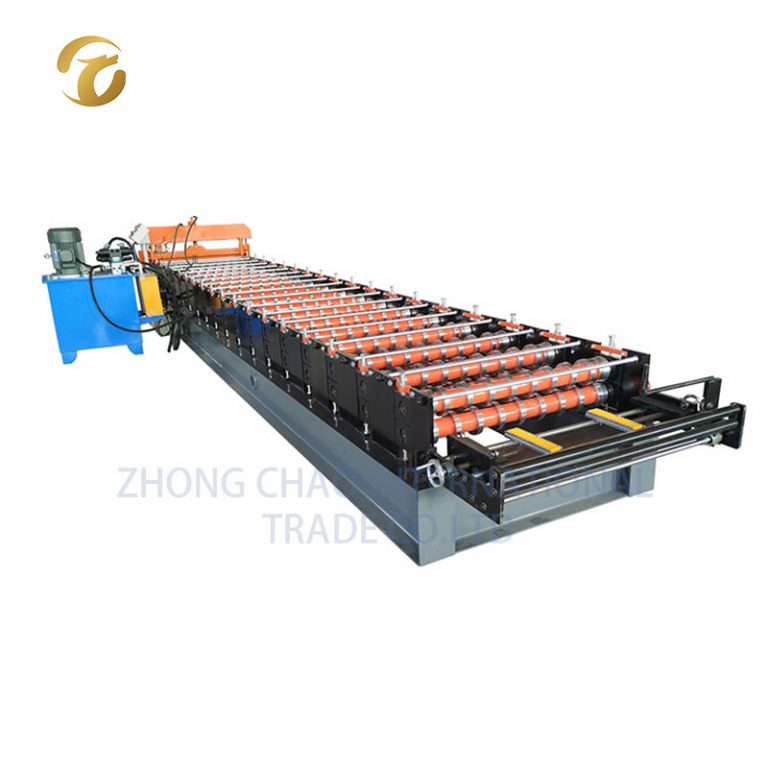

Galvanized Color Steel Roll Forming Machine High Precision 6 – 10m/Min

Please contact us for more details.

Galvanized Color Steel Roll Forming Machine High Precision 6 – 10m/Min

Please contact us for more details.

Galvanized Color Steel Roll Forming Machine High Precision 6 – 10m/Min

Please contact us for more details.

Product Details

Essential details
Applicable Industries:
Manufacturing Plant
Showroom Location:
India
Condition:
New
Type:
Metal Ceiling grid roll forming machine
Tile Type:
Colored Steel
Use:
ROOF
Production Capacity:
30sets/month
Place of Origin:
Hebei, China
Brand Name:
Xingbo
Voltage:
380V
Dimension(L*W*H):
as design
Weight:
kg
Warranty:
one year
Key Selling Points:
Long Service Life
Rolling thinckness:
0.3-0.8mm
Feeding width:
900mm
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
2 years
Core Components:
Gear
After-sales Service Provided:
Engineers available to service machinery overseas
certification:
CE ISO9001:2000
type:
Metal rool forming machine
shaft:
45#steel
roller:
Cr12
speed:
6-10m/min
transmission:
chain
cutting device:
hydraulic
PLC:
Delta
noise:
low
parameters
Production Capacity 20-25 m/min
Power(W) 5.5 KW hydraulic motor
Voltage 380V 50Hz 3phases
Dimension(L*W*H) 7600*800*1500mm
Weight  3.5 T
Suitable material Colored Steel plate, galvanized board, Aluminum plate
Width of the raw material 1200 mm
Rows of rollers 14/15 rows
Material of roller High grade 45# steel(plated chrome on surface)
Thickness of raw material 0.3-0.8 mm
Certification ISO
Tile Type Tile Cutting Machine

Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set
Packaging and shipping


FAQ

Q1. What’s your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.

After we get down payment, we will arrange production. About 30-45 days for delivery.

Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.

Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.

Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.

Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
