Please contact us for more details.

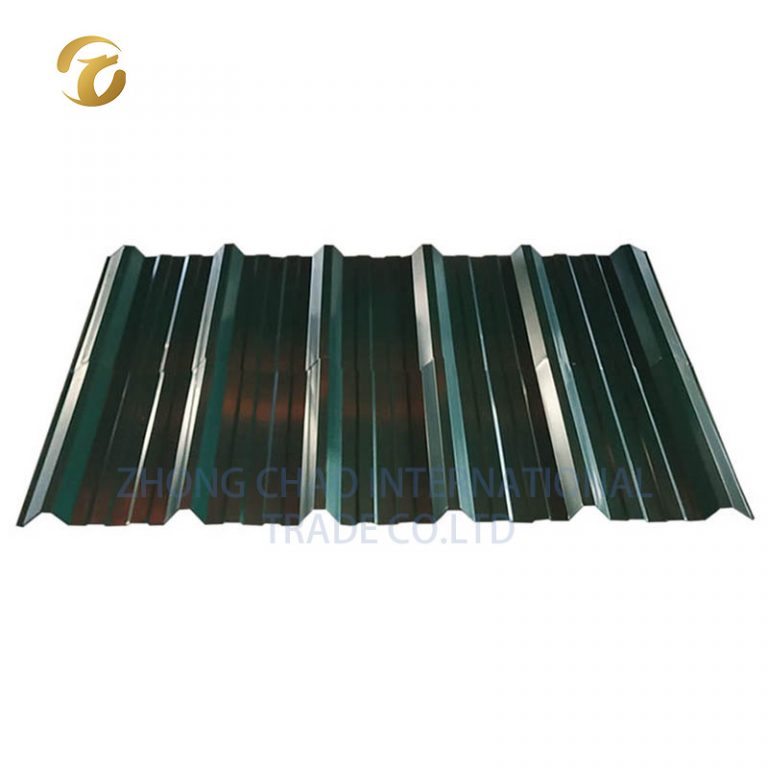

—- 1000mm width rooing sheet is a kind of steel roofing for all kinds of buildings.
—- The roofing lenght can be different.
—- Machine will working automaticly when you set all datum in the computer.
—- We provide all kind of siervice during you use the machine.

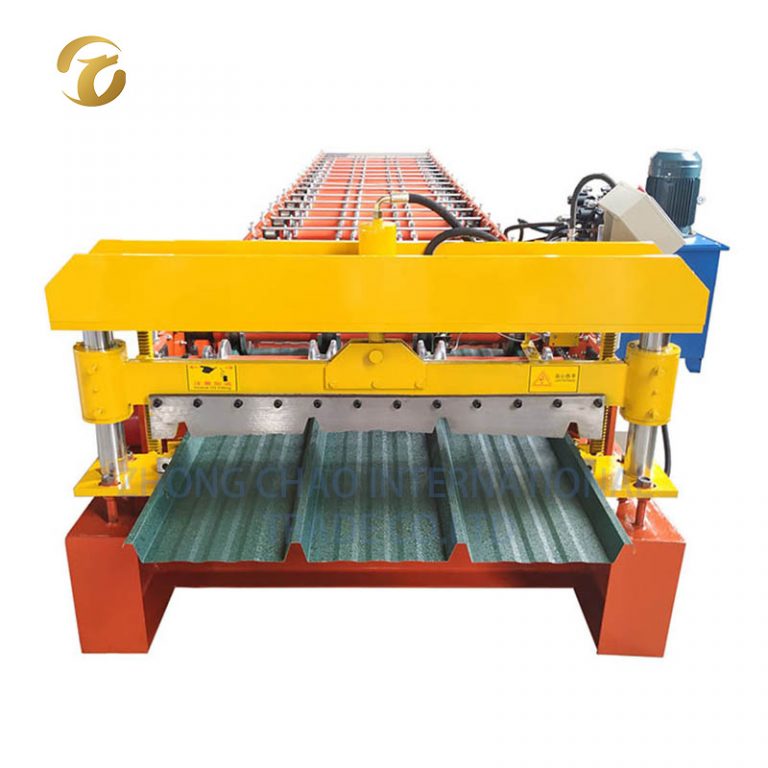

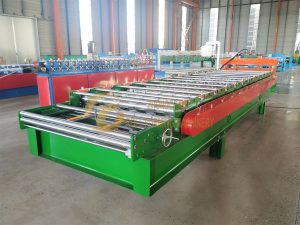

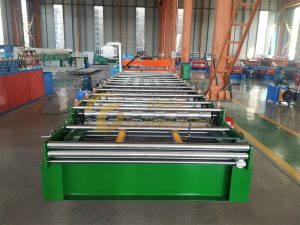

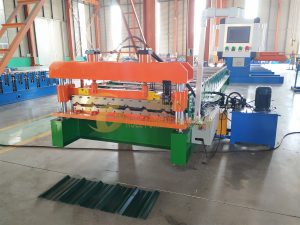

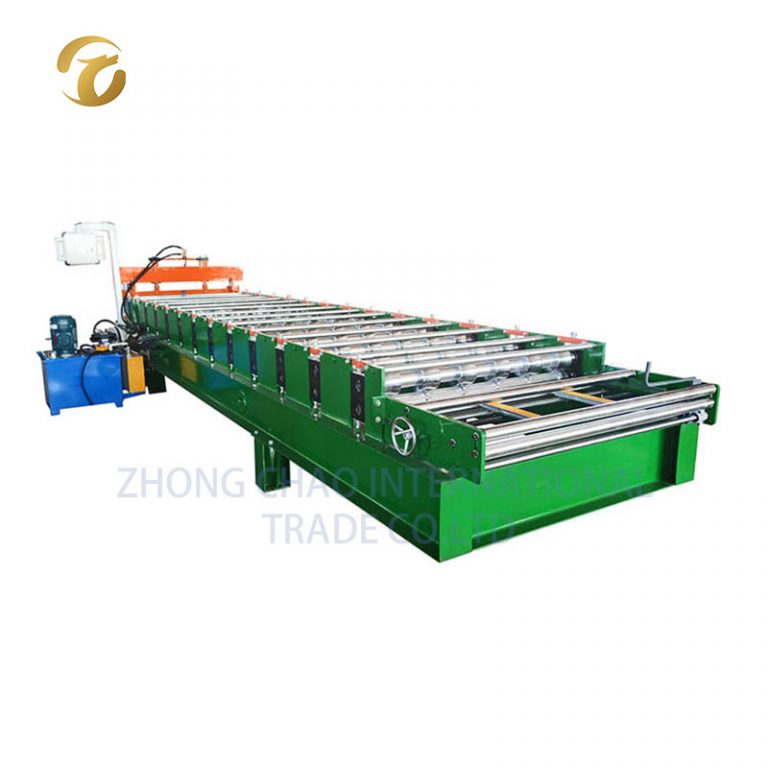

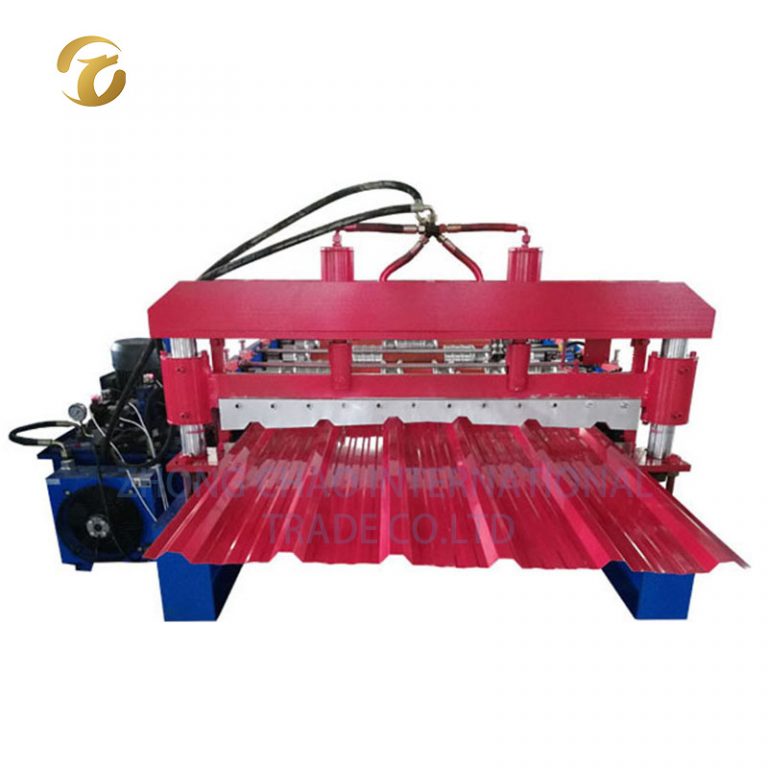

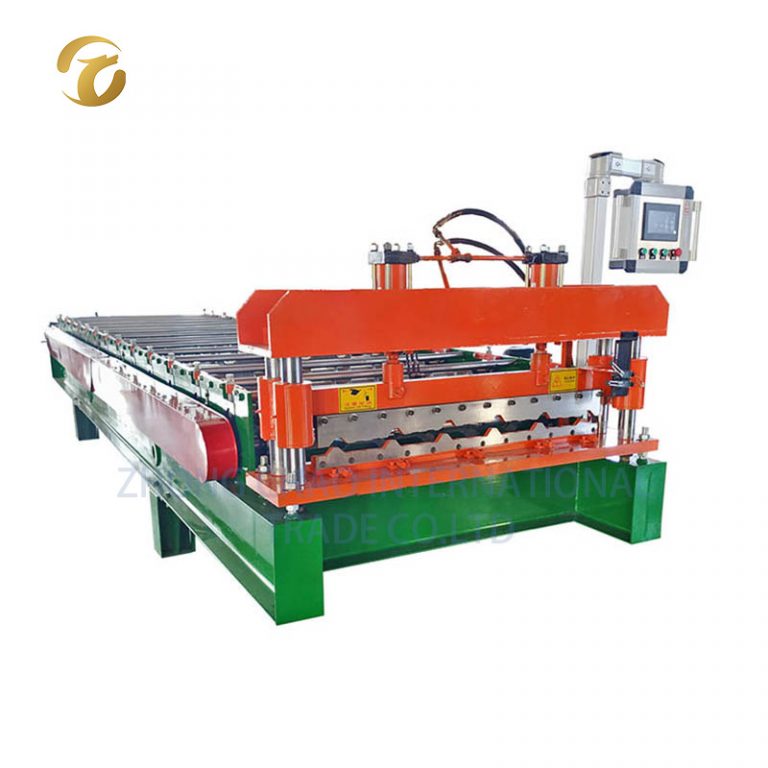

1000mm width roofing sheet matal roll forming machine for construction material parameters
| Raw material | |
| material | PPGI, PPGL, GI, Steel, Aluiminum |
| thickness of coil sheet | 0.3 to 0.8 mm |
| material expand width | 914mm/1000mm/1200mm/1220mm/1250mm |
| Efficiency width | 695mm/750mm/1000mm/1050mm |
| Machine details | |
| roller material | high grade NO. 45 forged steel with 0.05mm hard chrome plating |
| shaft material | high grade NO. 45 carbon wrought steel |
| cutting blade | Cr12 mould steel with quenched treatment |
| diameter of shaft | 70mm |
| main frame | 300-400mm H steel |
| forming steps | 15 stations |
| productivity | 8-12 m/min |
| hydraulic station power | 4 KW |
| hydraulic pressure | 10-12MPa |
| appearance size | 6700mm*1500mm*1500mm |
| hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirement |
| Cut Mode | Hydraulic forming after cutting off |
| Cutter materia | Cr12 Heat Treatment |
| Electronic control system | PLC, Touch Screen, Encoding counter |
| Color | Blue, green or yellow or as your requirement |
| Rolling material | 45# steel,roller surfaces polishing, hard plating |
| Service life | 10 years |
| Machine Components | ||
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
FAQ
Q1. What’s your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
We are one of the best cold roll forming machinery and equipment manufacturers and suppliers in China.
