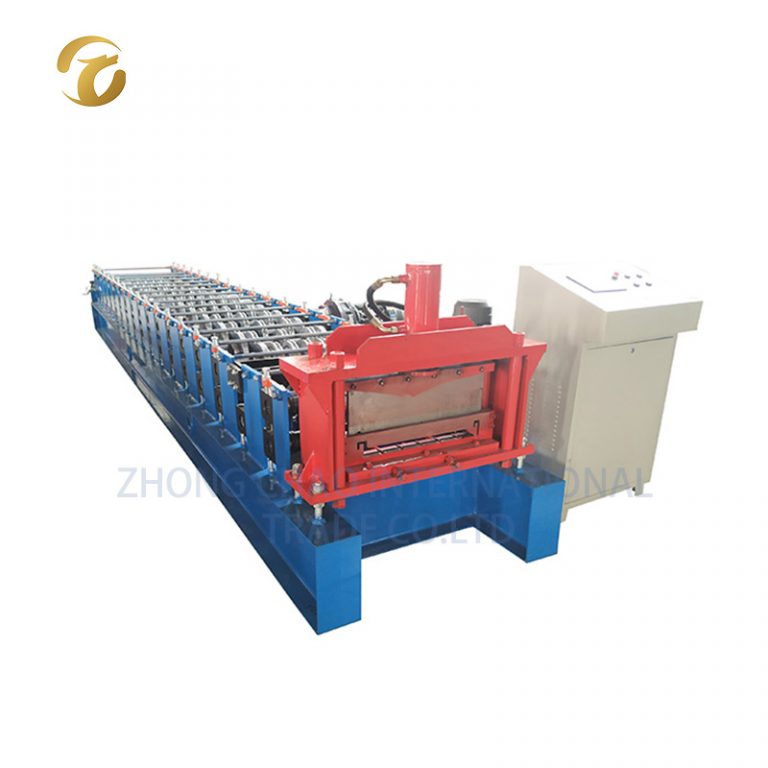

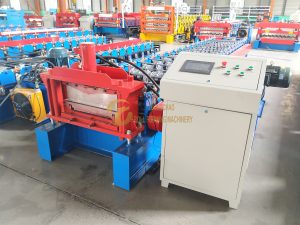

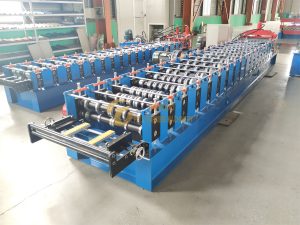

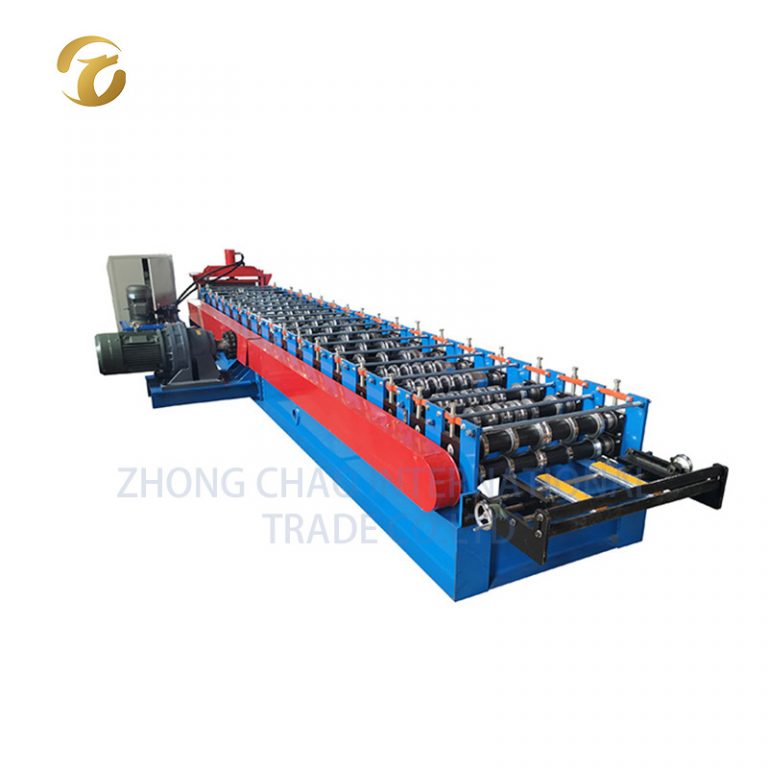

Floor deck roll forming machine Type F

Floor deck roll forming machine Type F

Floor deck roll forming machine Type F

Product Details

Products Description
Description
Explaination
Working speed
10-15 m/min(Shear time is not included)
Pressed plate thickness
1-1.5mm
Control mode
Panasonic PLC
Discharging rack
5T manual decoiler
Number of molding passes
28 lanes
Roll material
After finishing, the surface of 45# steel is chrome plated.
Shaft material and diameter
45# Steel finishing,Shaft diameter is¢85mm
Main engine power
22kw
Power of hydraulic station
5.5kw
Hydraulic pressure
12Mpa
Cutting mode
Shear after forming
Scissors material
Cr12Mov, quench HRC 58-62℃
Length tolerance
3m±1.5mm
Voltage
380V, 50HZ,3 phase(According to customer requirements can be adjusted)
Transmission mode
1.0 inch single row chain
Equipment form
slab-wall structure
Equipment color
Company color
Equipment size
L*W*H— 20m*1.5m*1.2m
Date of delivery
80 days
Payment method
30% advance charge,70% pay off on delivery

Essential details
Applicable Industries:Building Material Shops
Showroom Location:None
Condition:New
Type:Wall and Roofing Accessories
Tile Type:Colored Glaze Steel
Use:ROOF
Production Capacity:8-12m/min
Place of Origin:Zhejiang, China
Brand Name:Willing
Voltage:380V or as your requirement
Dimension(L*W*H):6500*1300*1100
Weight:about 5T
Warranty:1 Year
Key Selling Points:High-accuracy
After Warranty Service:Video technical support, Online support, Field maintenance and repair service
Local Service Location:None
After-sales Service Provided:Online support, Field installation, commissioning and training, Video technical support, Engineers available to service machinery overseas
Certification:CE ISO
Color:As your requirement

Packaging & delivery

Single package size:1700X150X130 cm
Single gross weight:10000.000 kg
Package Type:Packed by bundle or as customers’ requirements and shipped by container.
Main body of machine nake loaded into container and is covered with plastic film, spare parts in wooden box.
Packing with protection foaming.

FAQ

Q1. What’s your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.

After we get down payment, we will arrange production. About 30-45 days for delivery.

Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.

Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.

Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.

Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
