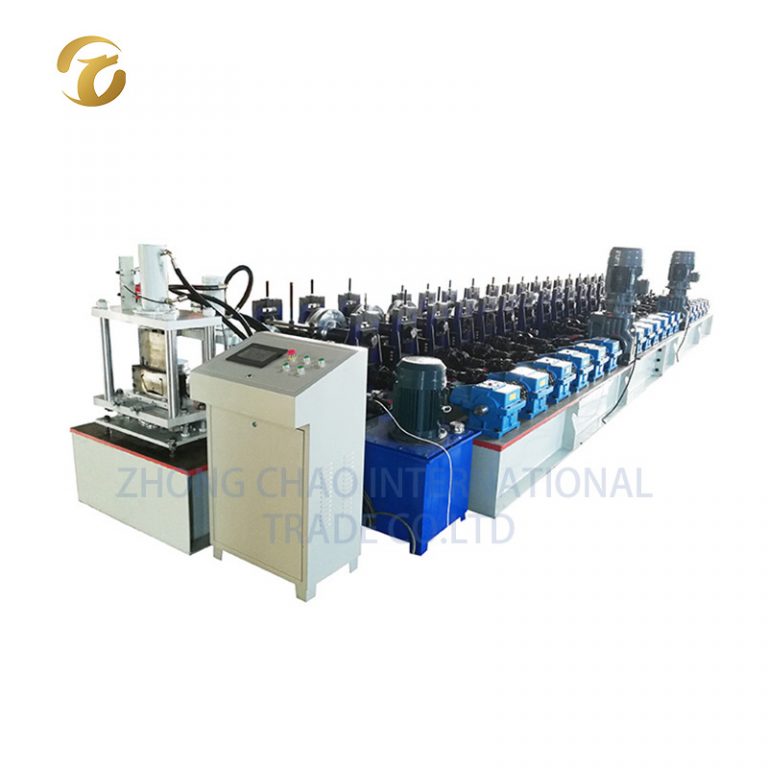

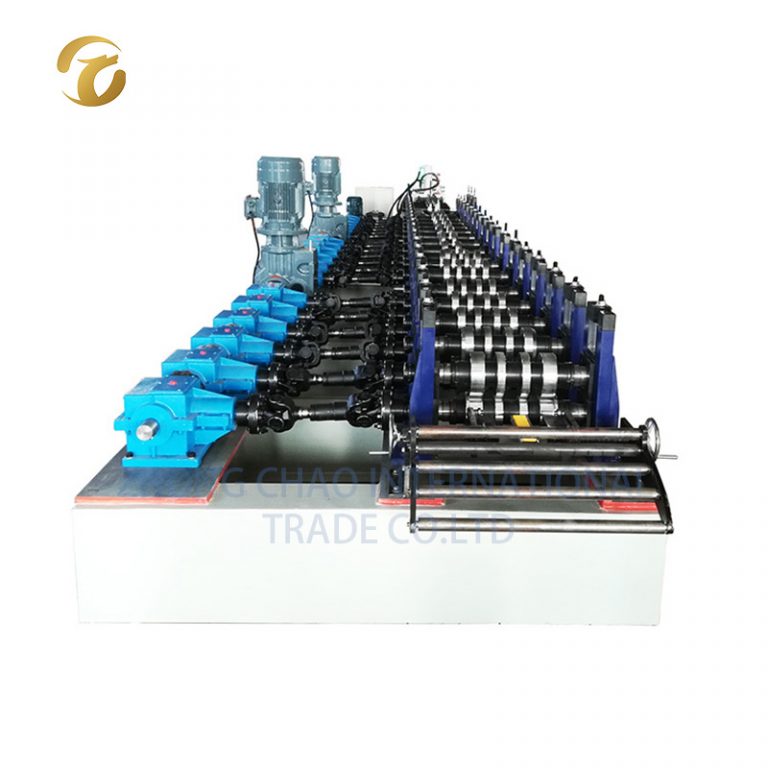

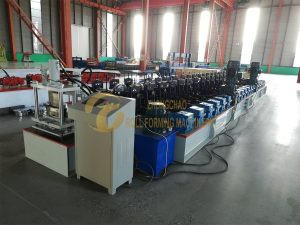

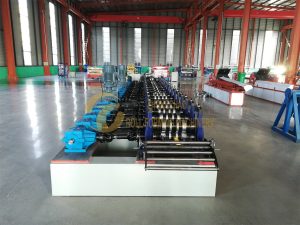

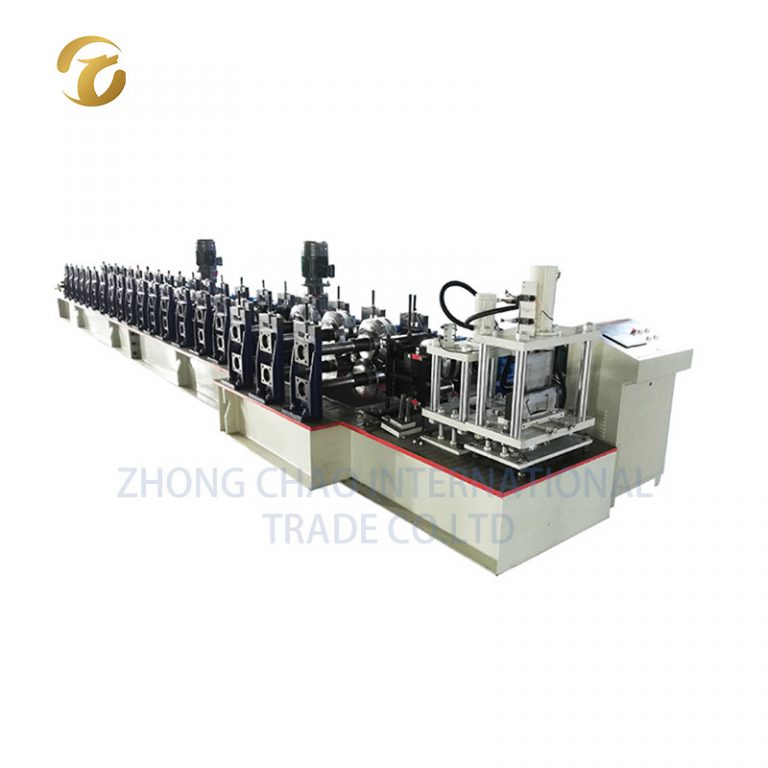

C&Z purlin roll forming machine

Please contact us for more details.

C&Z purlin roll forming machine

Please contact us for more details.

C&Z purlin roll forming machine

Please contact us for more details.

Product Details

 shafts flating device C purlin roll forming machine for industry plant buiding

—- Free technical support and free accessories supply.
—- Engineer available to service machinery overseas.
—- One year warranty is provided.
—- Long life technical guidance for free.
—- We always offer technical support, quick response, all your inquire will be replied in 24 hours.

2. 7 shafts flating device C purlin roll forming machine for industry plant buiding parameters

Item Name Specification
Width of feeding material <1000 mm coil sheet
Thickness of feeding material max 4.0 mm coil sheet
Roller station 8-18 stations
Shaft Diameter 55-95 mm
Productivity 8-15 m/min
Rollers’ material Bearing steel
Shaft material 45# steel
Weight 9 ton
length 8-11 m
Voltage 380V 50Hz 3phases
Control PLC
Decoiler 8 tons
Motor 22-30 kw
Driving way Chain transmission
Chain size 1.5-2 inch
Cutting system Hydraulic cutter





Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set

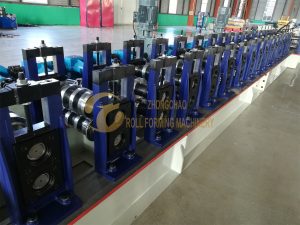

3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set

Packaging and shipping

FAQ

Q1. What’s your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.

After we get down payment, we will arrange production. About 30-45 days for delivery.

Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.

Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.

Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.

Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
