Please contact us for more details.
| Dimension(l*w*h): | 9500mm*1550mm*1700mm | Use: | Roof |
|---|---|---|---|
| Tile Type: | Colored Glaze Steel | After-sales Service Provided: | Video Technical Support |
| Warranty: | 24 Months | Control System: | Totally Automatic PLC Taiwan Delta |
| High Light: |
Steel Roof Sheet Roll Forming Machine, PLC Three Layer Roll Forming Machine |
||

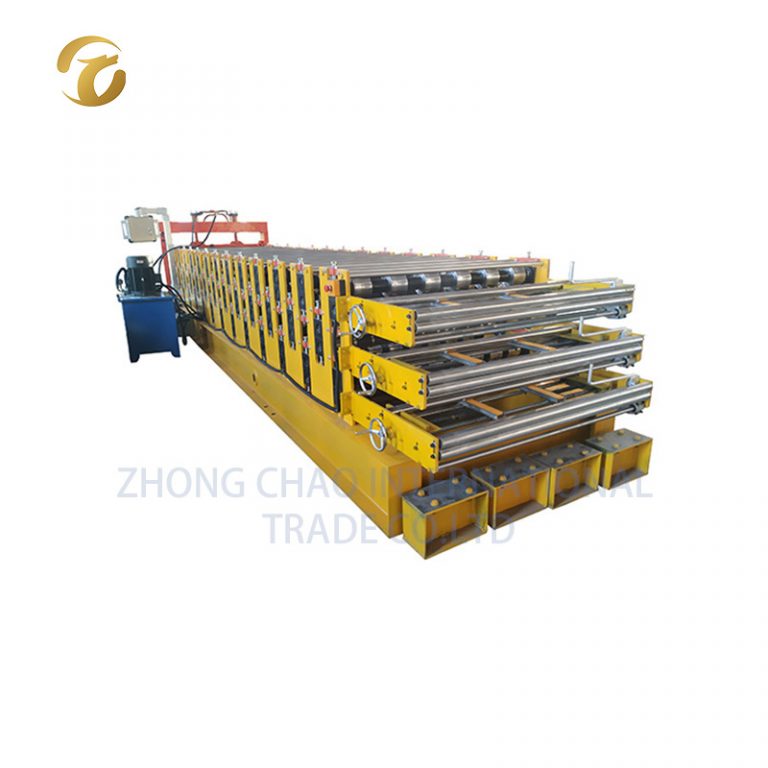

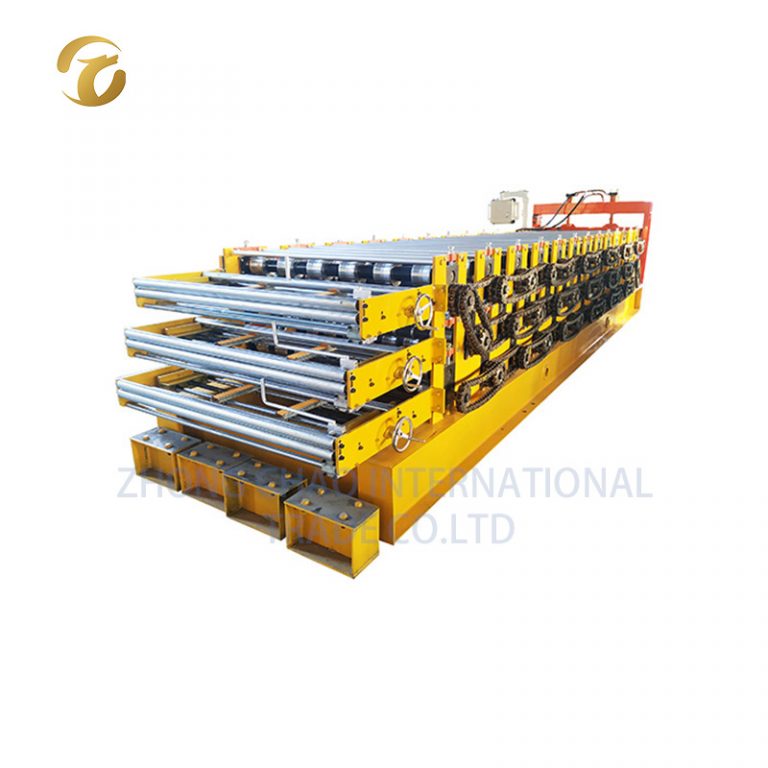

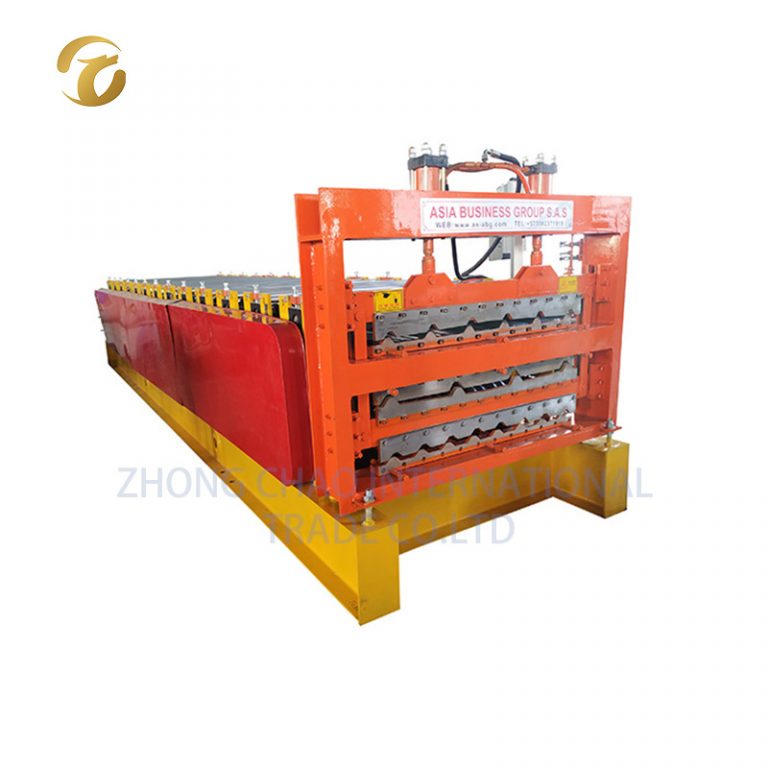

Steel Roof Sheet Three Layer Roll Forming Machine For Roof And Wall Sheet
Steel Roof Sheet Three Layer Roll Forming Machine For Roof And Wall Sheet
This is a three layers / triple layers metal sheet roll forming equipment, which one machine can produce three different types of roofing sheet, like trapezoidal ribs sheet, corrugated sheet, roof tile sheet or other types which customized, customer can request us to any combinations.
All the sheets produced by this three layer roll forming machine are widely used as rooing and wall of all kinds of buildings. The raw materials of the roofing sheet and wall sheet can be PPGI or GI.
Steel Roof Sheet Three Layer Roll Forming Machine For Roof And Wall Sheet Parameters
| Item | Name | Specifications |
| 1 | Decoiler | 1.Capacity:5 tons
2.Coil width:1250mm 3.Coil inner diameter:450-550mm 4.Main motor power:5.5 kw 5.Hydraulic power:5.5 kw 6.Add press arm to keep the coil from loosing. 7.Add pneumatic braking system 8.Add the speed sensor to keep the decoiler’s speed match with the roll former |
| 2 | Main roll former | 1.Roller station:13 station/15 stations/18 stations
2.Roller material:Cr 12 with quenched treatment 3.Shaft diameter:80mm 4.Shaft material:45# steel with tempered 5.Transmission:by chain 6.Motor power:7.5kw 7.Machine frame:350H steel welded 8.Cutting type:Hydraulic cutting 9.Cutting blade material:Cr12 with quenched treatment 10.Cutting tolerance:+/-1mm |
| 3 | Control system | 1.Control system:PLC
2.PLC brand:Siemens 3.Touch screen brand:Siemens 4.Button brand:Schneider 5.Encoder brand:Omron 6.Low voltage apparatus:Schneider |
| 4 | Hydraulic system | 1.Power:5.5kw
2.With fan cooling device 3.Brand:Yuken 4.Pressure:16 Mpa |
| 5 | Product table | 1.Length:3 m
2.Type:up-powered |
Multi Type Roofing Sheet Three Layer Roll Forming Machine Low Comsuption Working process
The complete line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep products accurate.
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 40 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 35 days after receiving deposit.
Warranty Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
FAQ
Q1. What’s your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
We are one of the best cold roll forming machinery and equipment manufacturers and suppliers in China.
