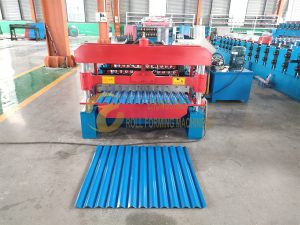

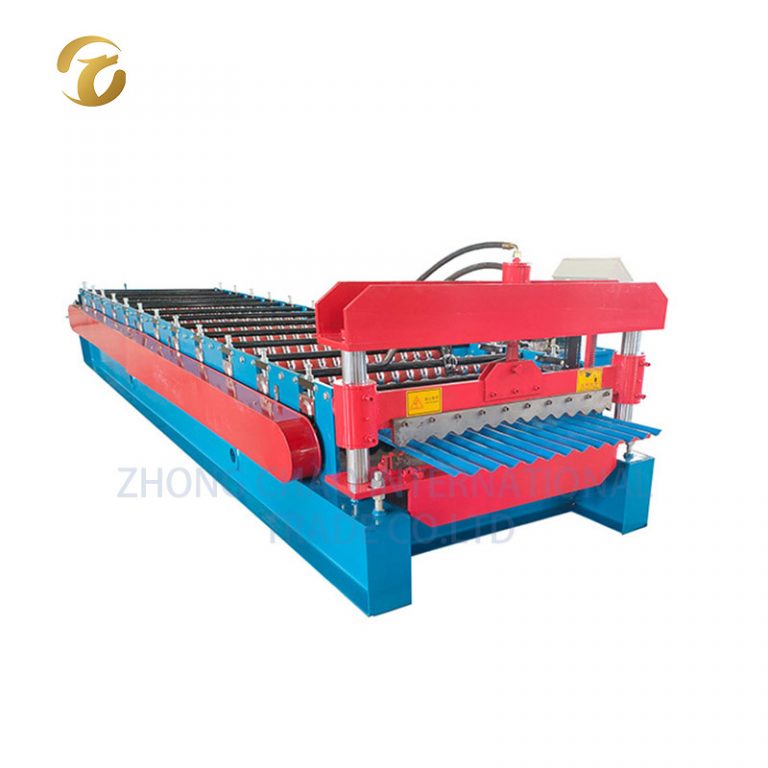

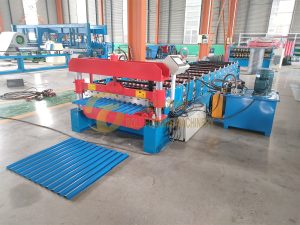

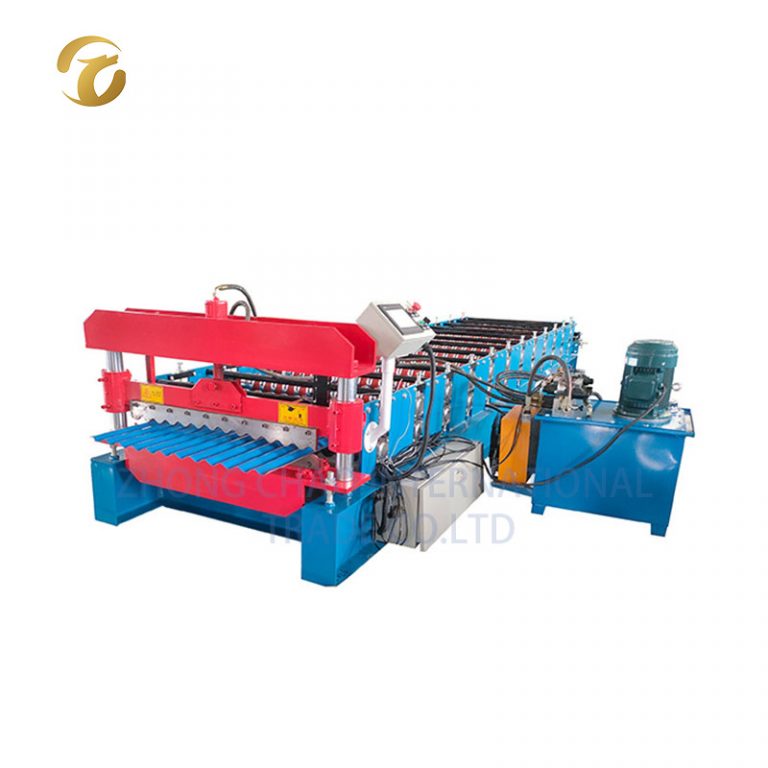

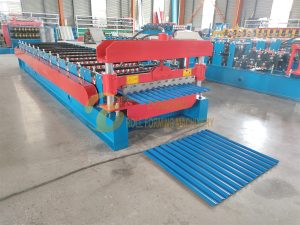

1. Automatic Roof Tile Corrugated Sheet Roll Forming Machine Customized Mold
Our company commits to provide customized coil processing solution according to each customer’s specific metalworking process. With experienced technical technical team and continuous researching investment, we are capable to offer coil handing solutions that meet higher international standards.
Precision machine tool, skilled workers, from spare parts preparation to equipment assembly, our machine can offer real–time manufacturing update for our valued customers.From raw material control, spare parts inspection and machine assembly, our factory implements a strict quality control process. We commit to offer coil performance. All work are just for making sure all the products of machines are qualified.
2. Steel Roof And Wall Corrugated Sheet Roll Forming Machine Hydraulic Cutter Technical Parameters:
| Material thickness | 0.3-0.8mm |
| Diameter of shaft(solid shaft) | 70mm |
| Material of shaft (solid shaft) | (high grade) 45# Steel, quenching and tempering treatment |
| Material of roller | 45# steel polished and coated with chrome HRC55-60° |
| Reducer | 8# cycloid reducer (high grade) |
| Cutting | hydraulic cutting after roll forming |
| Control system | PLC Frequency Control System with touch screen |
| No. | Name | Qty |
| 1 | De-coiler | 1 Set |
| 2 | Forming Machine | 1 Set |
| 3 | Hydraulic Cutting Device | 1 Set |
| 4 | PLC Control Box | 1 Set |
| 5 | Hydraulic Pump Station | 1 Set |
| 6 | Production Support Table | 1 Set |
| 7 | Pre-sliding Cutter | 1 Set |
LCL Loading Packaging: Steel pallet and plywood case.
——FCL Loading Packaging: Steel pallet with plastic film.
——Shipping: by sea
FAQ
Q1. What’s your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
We are one of the best cold roll forming machinery and equipment manufacturers and suppliers in China.
