Please contact us for more details.

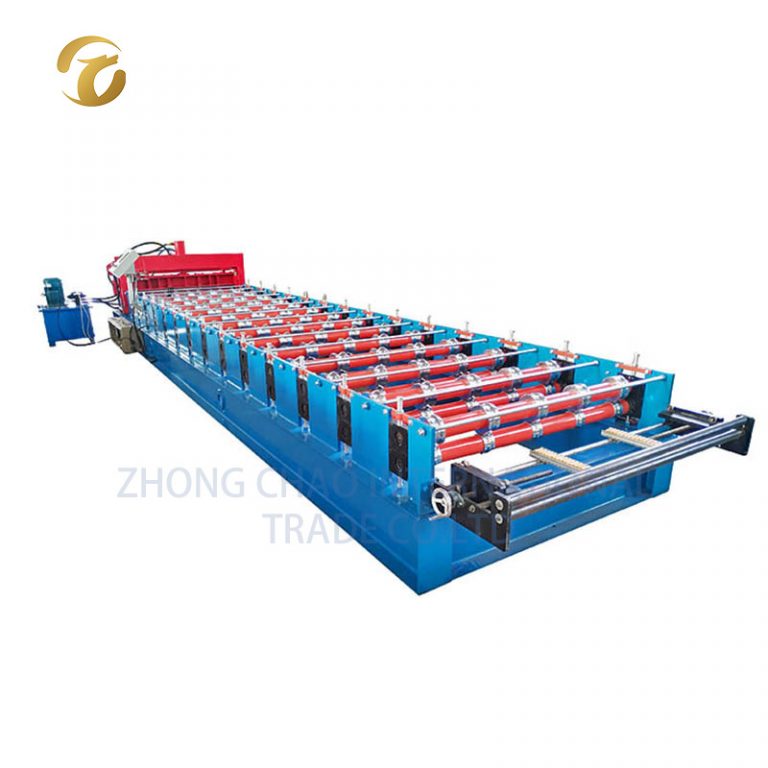

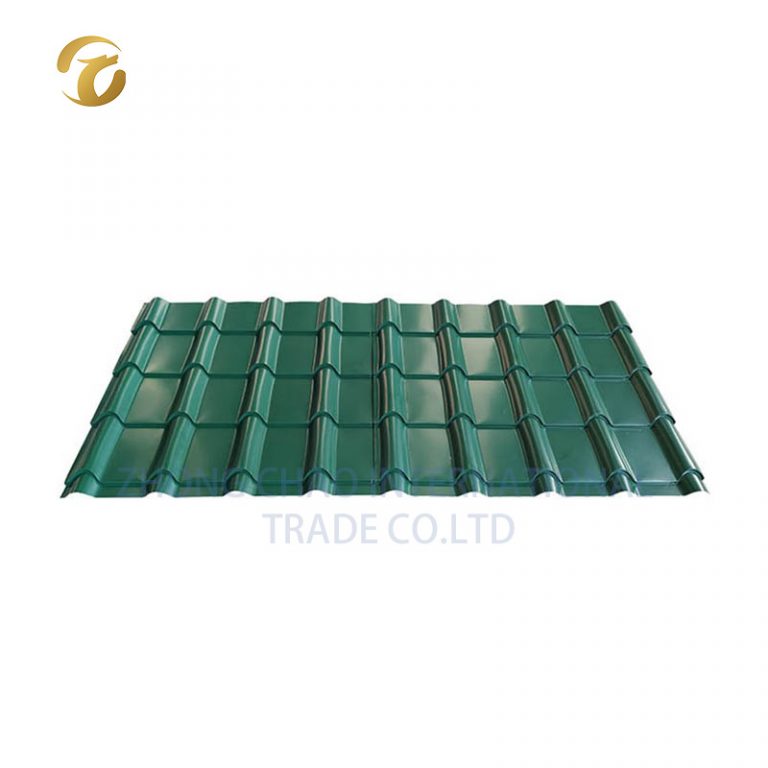

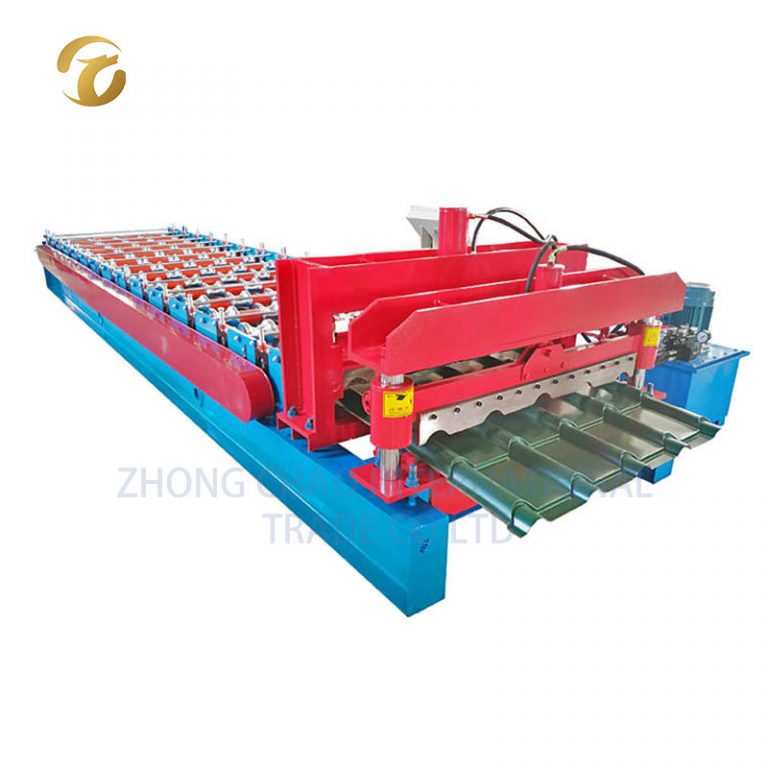

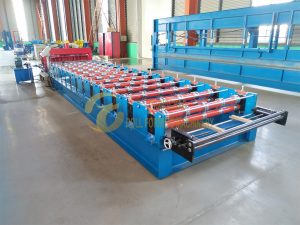

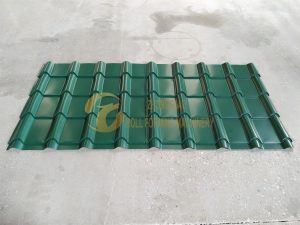

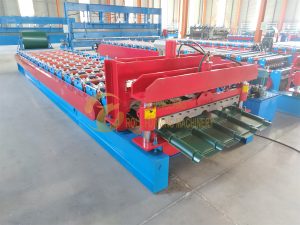

1. Metal Roof Sheet Glzed Tile Roll Forming Machine For Making Step Tiles Roof Material
— Metal Glazed Tile Roll Forming Machine is the machine to produce the metal roofing sheet,this is a very popular tiles in the whole world.
— We adopt bigger materials for the machine body and rollers, which can let machine working a long life.
— Cooperated with famous electric accessories suppliers in China, we can ensure the machine control system is reliable.
— If customer show their design of the roof tile to us, our egnieer will provide the best suggestion.
2. Metal Roof Sheet Glzed Tile Roll Forming Machine For Making Step Tiles Roof Material Parameters:
| Configurations | Manual decoiler,,main machine of roll forming, cutting system,hydraulic pump station PLC control system,Material receiving rack |
|
| Manual decoiler | Capacity | 5T |
| Max Coil width | 500mm | |
| Main machine | roller stations | 15,11,13 |
| Shaft diameter | 70mm solid shaft | |
| main frame | 350H steel | |
| roller material | 45# steel, surface hard chromium plating. | |
| Speed of production | 12-15m/min | |
| Transport | Chain drive | |
| Main motor power | 5.5kw | |
| Hydraulic system | Hydraulic power | 4kw |
| Hydraulic oil | 46# oil | |
| PLC control system | Language | Chinese,English, Spanish, Russian, Portuguese, Arabic and so on |
| Touch screen | Delta Brand | |
| Order quantity | 20 | |
Product packaging
FAQ
Q1. What’s your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
We are one of the best cold roll forming machinery and equipment manufacturers and suppliers in China.
