Color Steel Metal Roof Ridge Roll Forming Machine 15 – 20 m/min

Please contact us for more details.

Chat Now

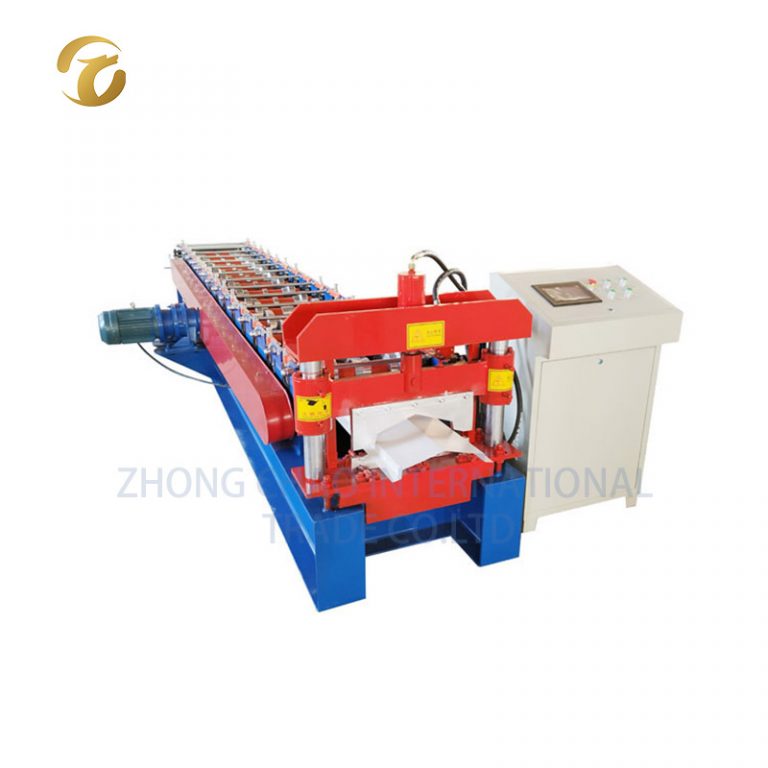

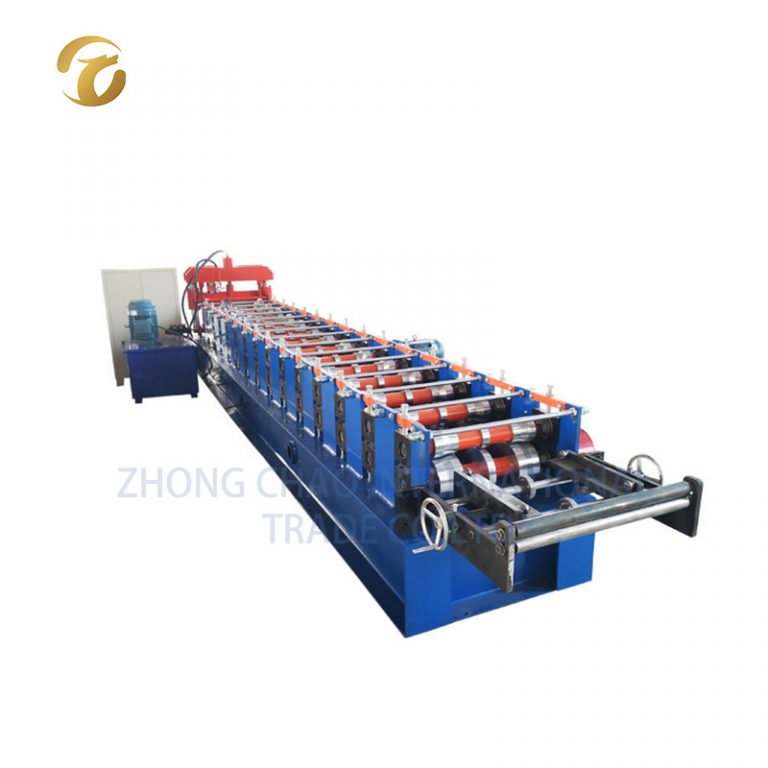

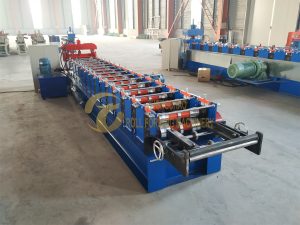

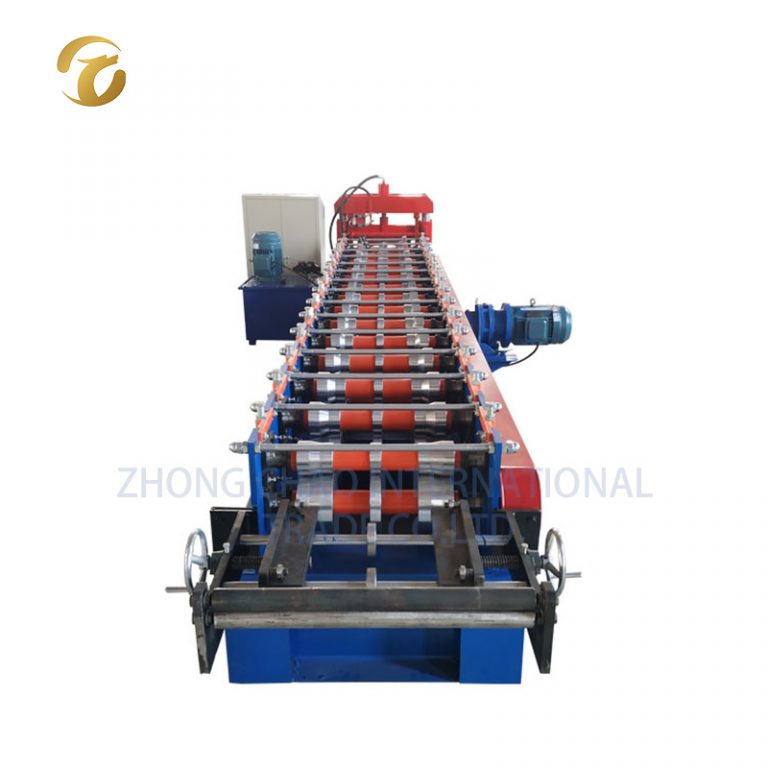

Color Steel Metal Roof Ridge Roll Forming Machine 15 – 20 m/min

Please contact us for more details.

Chat Now

Color Steel Metal Roof Ridge Roll Forming Machine 15 – 20 m/min

Please contact us for more details.

Chat Now

Product Details

Advantage:

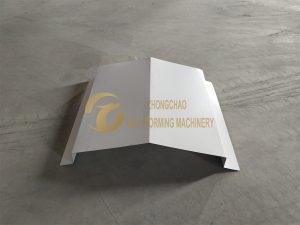

– ridge tile forming machine is the machine to produce ridge caps for top part of roof, it is covered on the joint part of the two roofing sheet.
– one is the details while manufacturing ridge tile forming machine. we always pay much more attention on processing details, even the screws and nuts are national standard with zinc plating, so that we can ensure the precise forming and durable quality.
Machine specification

NO.	Item	Specification
1	Processing material	PPGI,PPGL
2	Processing thickness	0.3-0.8mm
3.	Coil width	420mm
4.	Material of main frame	300H steel
5.	Diameter of Soild shaft	70mm, high grade 45# steel

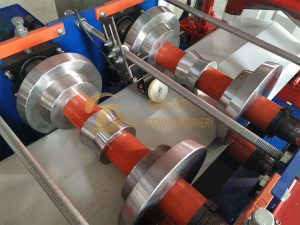

6.	Roller	Quenched and tempered treatment, hard chrome coated 0.05-0.07mm
7.	Thickness of middle plate	16mm
8.	Forming station	14 station
9.	Transmission	By chain(1.0 inch) link bearing
10	Power of main motor	4kw with Cycloidal reducer
11	Power of pump station	4kw
12	Forming speed	about 10-15m/min
13	Hydraulic cutting	Controlled by PLC
14	PLC	DELTA(TAIWAN)
15	Material of razor blades	Cr 12, quenching 58-62℃
16	Frequency converter	It has the advantage of slowing down before cutting, to ensure the length accuracy(±1mm, far better than industrial standard ±3mm).

Ridge Cap Roll Forming Machine, it is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine, glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.

When you choose roof sheet corrugated roll forming machine, you had better learn popular shape in local, also raw material is an important considering data, if do not have good supplier in local, we can assist you purchase it in China together. we are professional factory and in this area for many years, any requires please contact us at any time!

Packaging and shipping

FAQ

Q1. What’s your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.

After we get down payment, we will arrange production. About 30-45 days for delivery.

Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.

Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.

Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.

Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
