Part details | Item Name | Specification |
Material | Raw material | Galvanized steel or PPGI |
Thickness | 0.3-0.8 mm | |
Machine | Roller station | 14 or depend on customer’ drawing |
Shaft diameter | 70 mm | |
Shaft material | 45# steel with 0.05mm chrome | |
Roller material | 45# steel with 0.05mm chrome | |
Machine size | About 6×1.5×1.3 m | |
Machine weight | About 3.5 ton | |
Machine color | As customer’ request | |
Working speed | 3-8 m/min | |
Cutter | Hardness | 50-65 HRC |
Cutting tolerance | ± 1 mm | |
Material | Cr 12 | |
Operate | Hydraulic cutting | |
Power | Driving way | Chain 1 inch |
Main power | 4 kw | |
Pump power | 3 kw | |
Voltage | 380v/50HZ,3P or customize
as customer’ request |
|
Control system | PLC brand | Delta made in Twaiwan |
Screen | Touchable screen | |
Language | Chinese and English or add language as customer need | |
Decoiler | Operation | Manual |
Weight capicatity | 3 ton | |
Price | Free as gift | |
Receiving table | Operation | Manual |
Length | 3 m | |
Price | Free as gift |

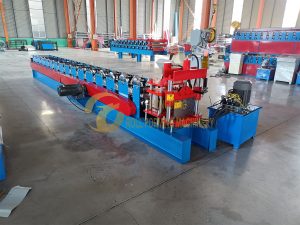

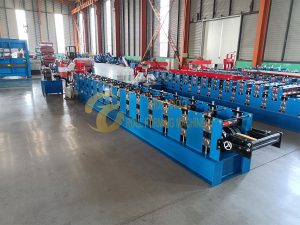

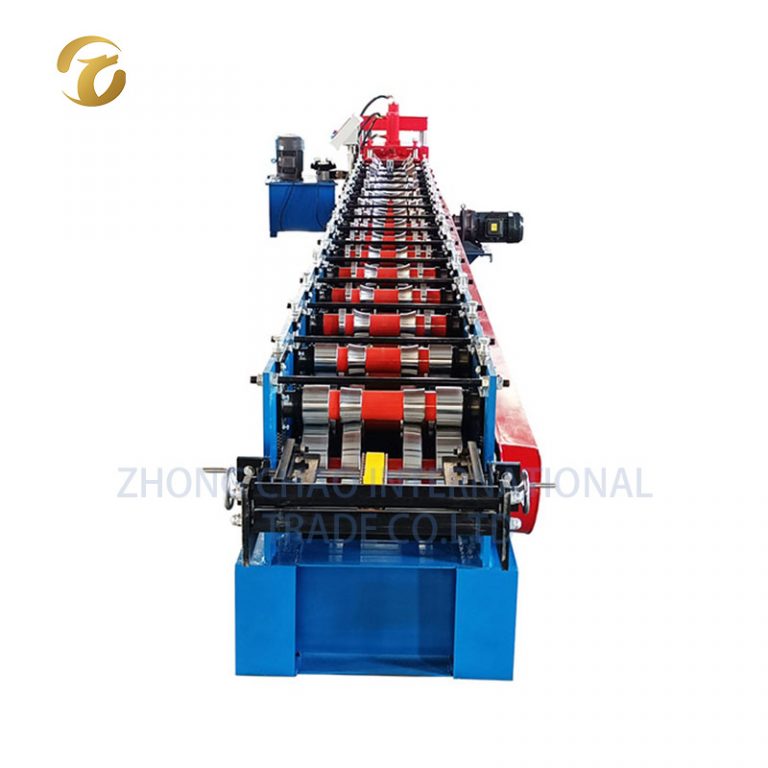

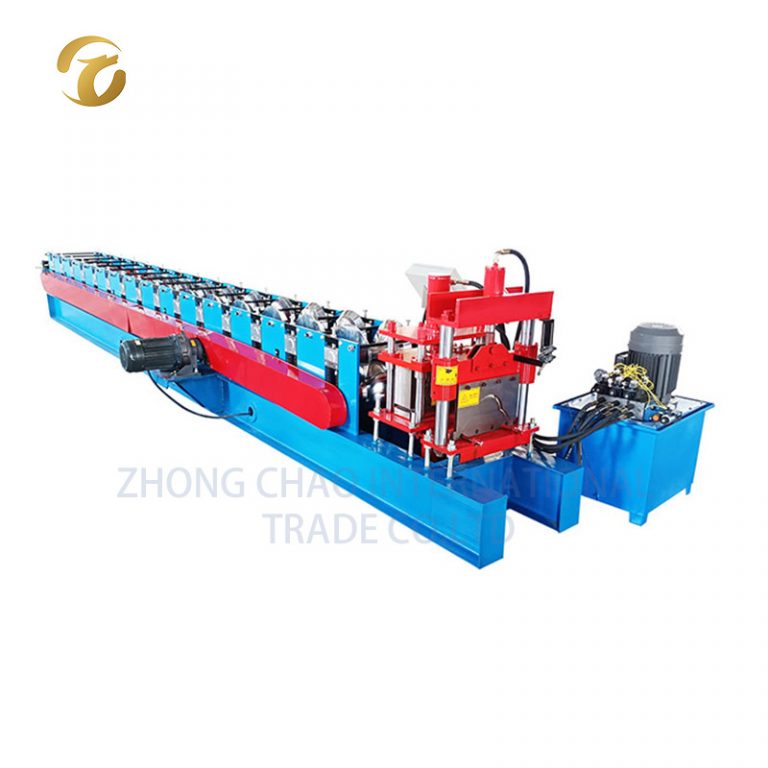

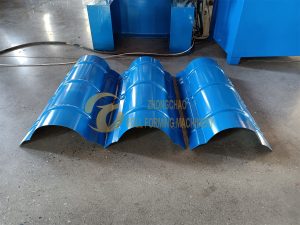

Ridge Cap Roll Forming Machine, it is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine, glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.
FAQ
Q1. What’s your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
We are one of the best cold roll forming machinery and equipment manufacturers and suppliers in China.
