Please contact us for more details.

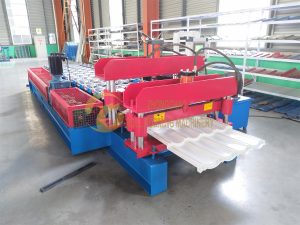

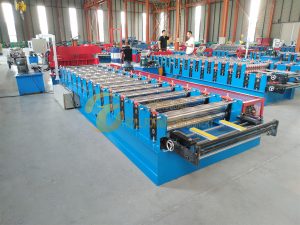

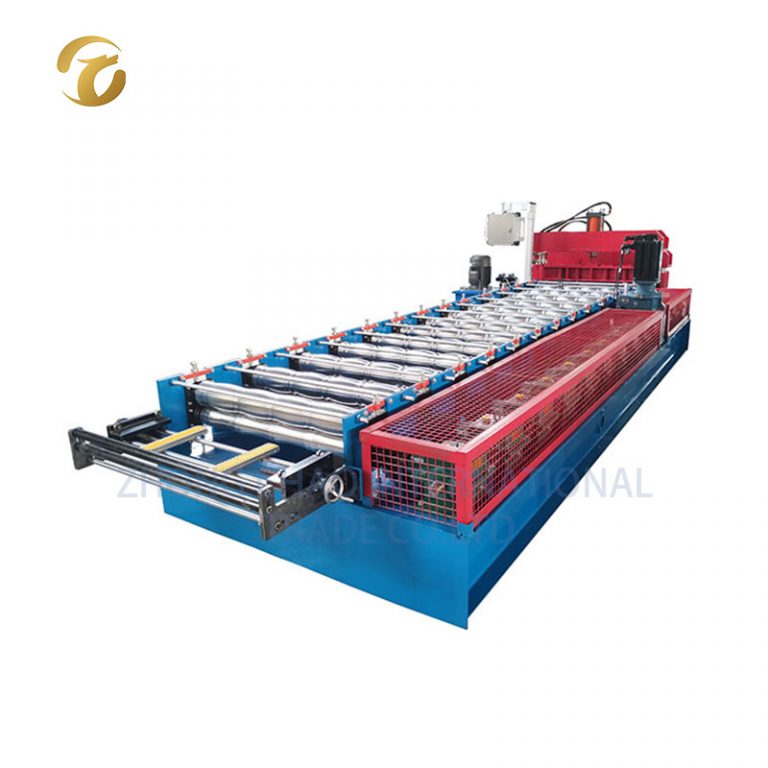

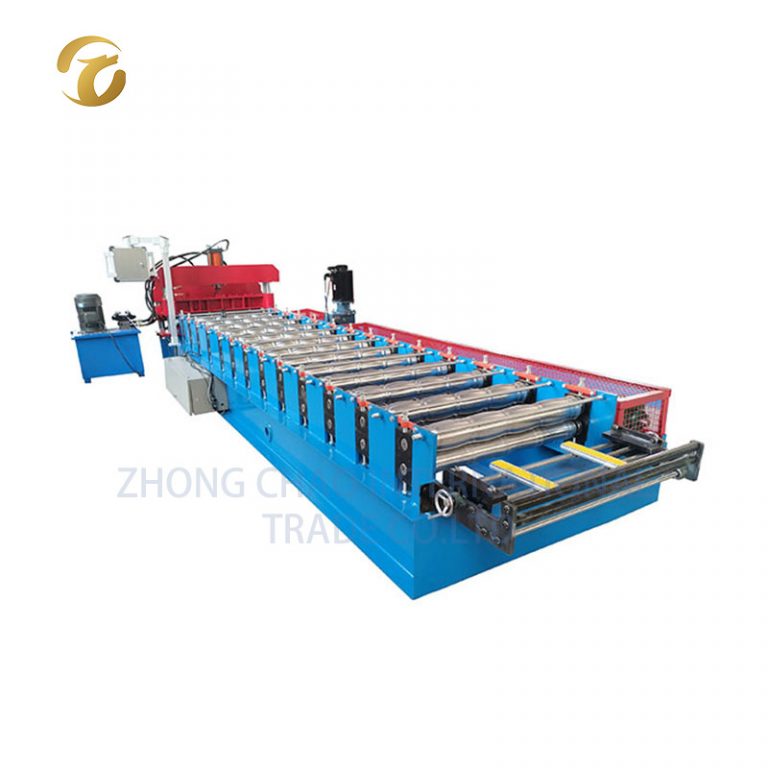

1. Iron Sheet Roof Glazed Tile Making Machinery Colored Steel Panel Of Housetop
— We provide such customized service: metal tile profile, machine color, localization of operating language and voltage, logo design, machine protective cover, ect.
— We provide machine inspection pictures and videos before machine delivery.
— We provide machine installation videos, online remote guidance, and engineer visits for adjustment and repair services.
2. Iron Sheet Roof Glazed Tile Making Machinery Colored Steel Panel Of Housetop Parameters:
| NO. | Item | Description |
| 1 | Material width | 1000 |
| 2 | Number of forming steps | 13 |
| 3 | Diameter of shaft | 70mm |
| 4 | Processing material | GI,PPGI |
| 5 | Processing thickness | 0.2mm -0.6mm |
| 6 | Middle plate thickness | 16mm |
| 7 | Material of shaft | 45# steel with tempering |
| 8 | Cutting type | Hydraulic cutting |
| 9 | Main motor power | 4kw |
| 10 | Pump station | 3kw |
| 11 | Main frame | 300H steel |
| 12 | Control system | PLC computer |
| 13 | Brand of electrical system | Delta |
| 14 | Manual decoiler | 5 tons |
| 15 | power | 380v,3 phase,50hz |
| 16 | Dimensions(L*W*H) | 6.5*1.2*1.2M |
Product packaging
Q1. What’s your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
We are one of the best cold roll forming machinery and equipment manufacturers and suppliers in China.
