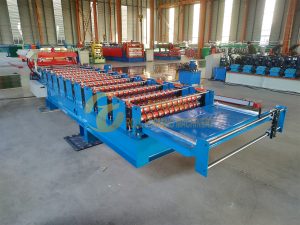

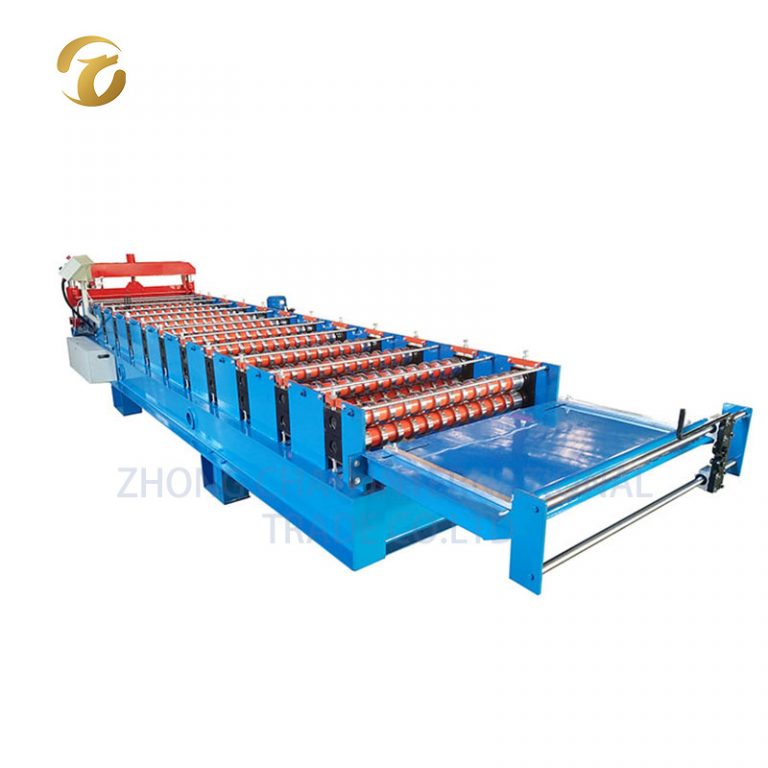

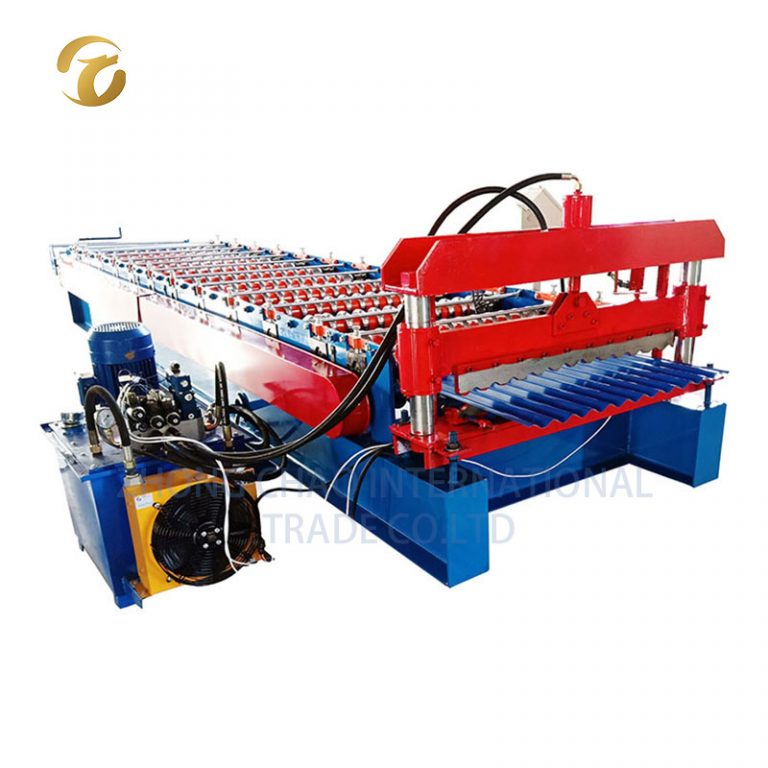

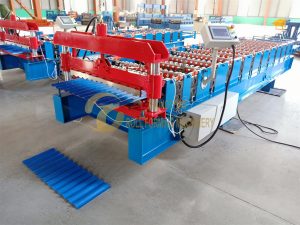

1. Automatic Corrugated Wave Panel Sheet Roll Forming Machine Making Tiles
– Automatic roll forming and cutting with Inverter, PLC, HMI
– Automatic programmable length settings via the touch panel
– Roller and blade are fabricated from alloy 60-62HRC
– Save history for orders in 30 days
– Customize design
– Stable operation with strong power and body frame
2. Automatic Corrugated Wave Panel Sheet Roll Forming Machine Making Tiles Technical Parameters:
| No. | Item | Unit | Parameter | |
| 1 | Material | Type | PPGI; PPGL; GI; GL; PPAL | |
| Thickness of Material | mm | 0.3-0.8mm | ||
| 2 | Material Width | mm | 762-1450mm | |
| 3 | Production Speed | m/min | 0-12m/min(common) | |
| High Production Speed | ||||
| 4 | Effective Width of Product | mm | 635-1260mm | |
| 5 | Roller Material | 45#, Cr12, GCr15, GCr12MoV | ||
| 6 | Drive Type | By Chain or Gear or Gearbox | ||
| 7 | Motor Power | KW | 4+4 | |
| 8 | Brand of Elecetric Control System | Delta or Siemens or Schneider | ||
| 9 | Dimension( L * W * H ) | m | 8.5*1.45*1.5 | |
| 10 | Warranty | month | 24 | |
| Roll forming system
|
|
FAQ
Q1. What’s your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
We are one of the best cold roll forming machinery and equipment manufacturers and suppliers in China.
