Please contact us for more details.

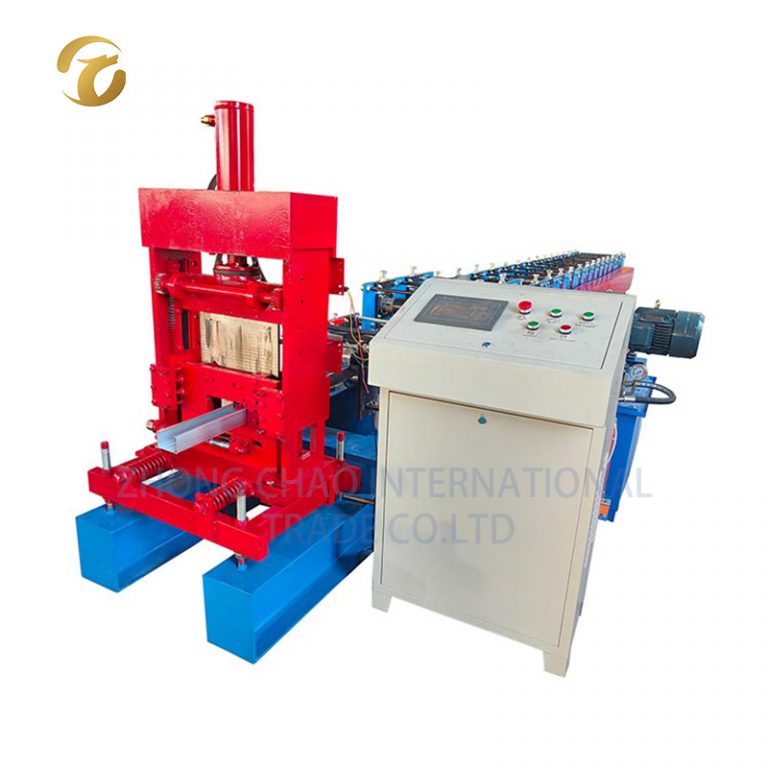

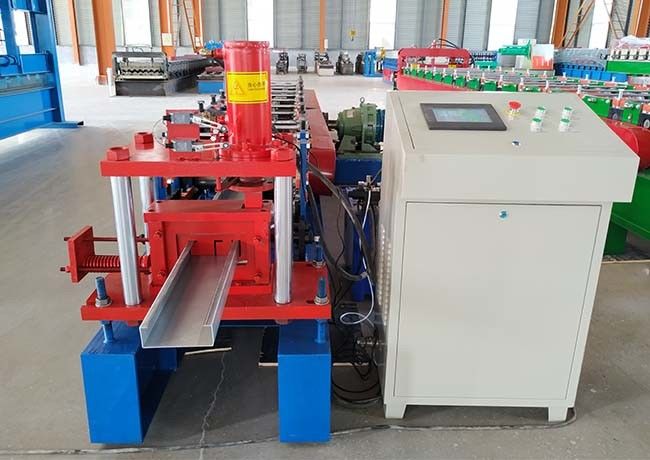

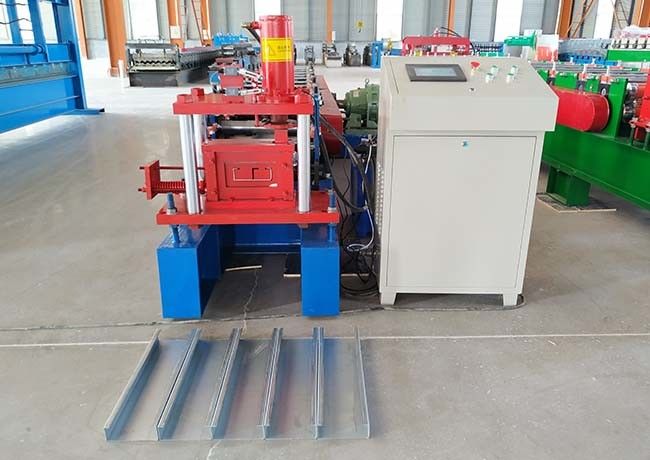

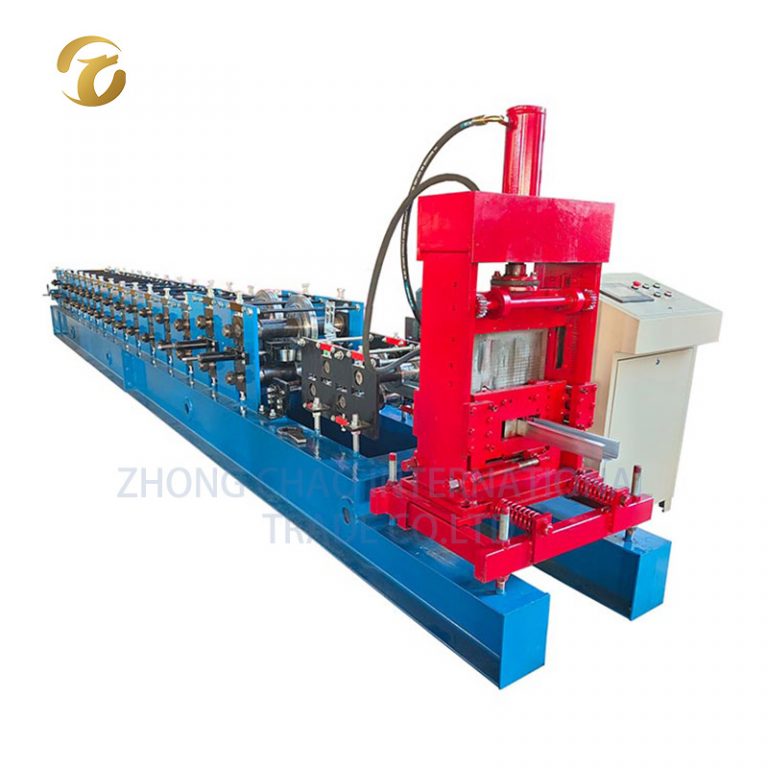

. Technical parameters:
| Raw material | |
| material spec | sheet, galvanized steel sheet, aluminum sheet |
| thickness of coil sheet | 0.5-3mm |
| Machine details | |

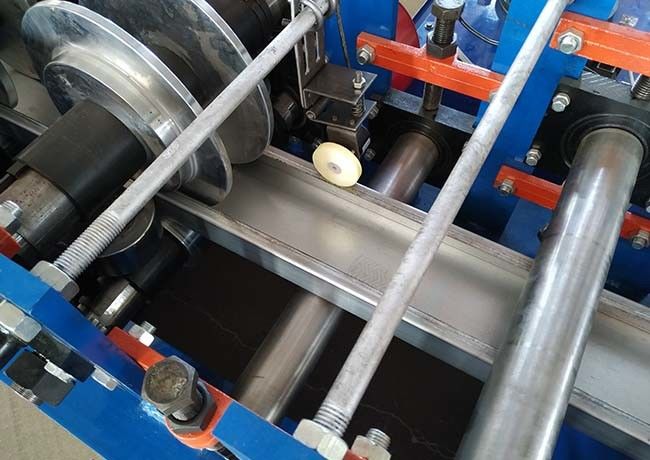

| roller material | High grade NO. 45 forged steel with 0.05mm hard chrome plating |
| shaft material | High grade NO. 45 carbon wrought steel |
| cutting blade | Cr12 mould steel with quenched treatment |
| diameter of shaft | 80mm |
| forming steps | 12 rows |
| productivity | 20-25m/min |
| hydraulic station power | 22 KW |
| hydraulic pressure | 10-12MPa |
| controlling system | famous PLC computer control |
| material of cutting table | Cr 12 mould steel with quenched treatment |
| appearance size | 7500mm*1150mm*1510mm |
| hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirements |
Device Configuration
| No | number | |
| (1) | Manual decoiler | 1 set |
| (2) | Guiding device | 1 set |
| (3) | Main roll forming machine | 1 set |
| (4) | Hydraulic cutting device | 1 set |
| (5) | PLC electric control system | 1 set |
| (6) | Hydraulic driving system | 1 set |
| (7) | Special tools and parts | 1 set |
| Characteristic
|
|
A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.
B. Without visiting, we will send you user manual and video to teach you to install and operate.
C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
FAQ
Q1. What’s your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
We are one of the best cold roll forming machinery and equipment manufacturers and suppliers in China.
